GROOVING HOLDER INSERT T#R

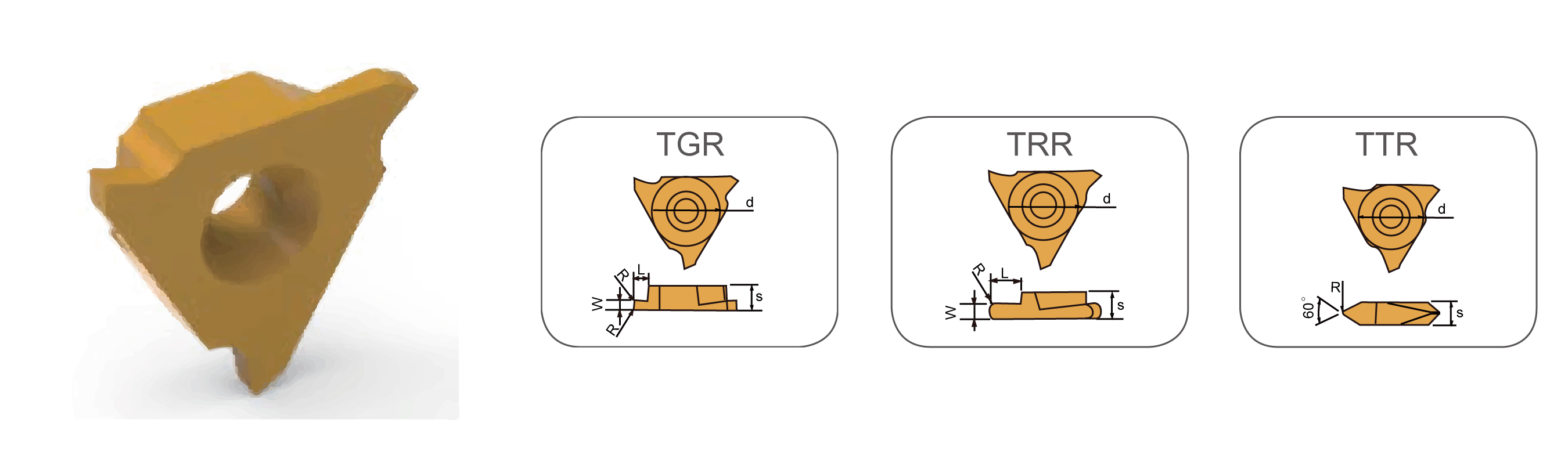

Please click the picture to enlarge.
Specification
| Ordering Code | UA3F2 | W | L | R | d | S |
|---|
| TGR16050 |
* |
0.50 |
1.4 |
0.00 |
9.525 |
3.18 |
| TGR16075 |
* |
0.75 |
2.5 |
0.10 |
9.525 |
3.18 |
| TGR16095 |
* |
0.95 |
2.5 |
0.10 |
9.525 |
3.18 |
| TGR16100 |
* |
1.00 |
2.5 |
0.10 |
9.525 |
3.18 |
| TGR16125 |
* |
1.25 |
2.5 |
0.10 |
9.525 |
3.18 |
| TGR16135 |
* |
1.35 |
2.5 |
0.10 |
9.525 |
3.18 |
| TGR16150 |
* |
1.50 |
2.5 |
0.20 |
9.525 |
3.18 |
| TGR16200 |
* |
2.00 |
3.0 |
0.20 |
9.525 |
3.18 |
| TGR22100 |
* |
1.00 |
2.5 |
0.10 |
12.70 |
4.76 |
| TGR22125 |
* |
1.25 |
2.5 |
0.20 |
12.70 |
4.76 |
| TGR22135 |
* |
1.35 |
2.5 |
0.20 |
12.70 |
4.76 |
| TGR22145 |
* |
1.45 |
2.5 |
0.20 |
12.70 |
4.76 |
| TGR22150 |
* |
1.50 |
3.9 |
0.20 |
12.70 |
4.76 |
| TGR22200 |
* |
2.00 |
3.9 |
0.20 |
12.70 |
4.76 |
| TGR22250 |
* |
2.50 |
5.4 |
0.30 |
12.70 |
4.76 |
| TGR22300 |
* |
3.00 |
5.4 |
0.30 |
12.70 |
4.76 |
| Ordering Code | UA3F2 | W | L | R | d | S |
|---|
| TRR22050 |
* |
1.00 |
2.5 |
0.50 |
12.70 |
4.76 |
| TRR22075 |
* |
1.50 |
3.9 |
0.75 |
12.70 |
4.76 |
| TRR22100 |
* |
2.00 |
3.9 |
1.00 |
12.70 |
4.76 |
| TRR22125 |
* |
2.50 |
5.4 |
1.25 |
12.70 |
4.76 |
| TRR22150 |
* |
3.00 |
5.4 |
1.50 |
12.70 |
4.76 |
| TRR22175 |
* |
3.50 |
5.4 |
1.75 |
12.70 |
4.76 |
| TRR22200 |
* |
4.00 |
5.4 |
2.00 |
12.70 |
4.76 |
| Ordering Code | UA3F2 | Pitch (mm) | R | d | S |
|---|
| TTR226001 |
* |
1.0~1.75 |
0.10 |
12.70 |
4.76 |
| TTR226002 |
* |
2.0~2.5 |
0.20 |
12.70 |
4.76 |
