Insert Type Indexable Drills WDX 4D

Please click the picture to enlarge.

Specification

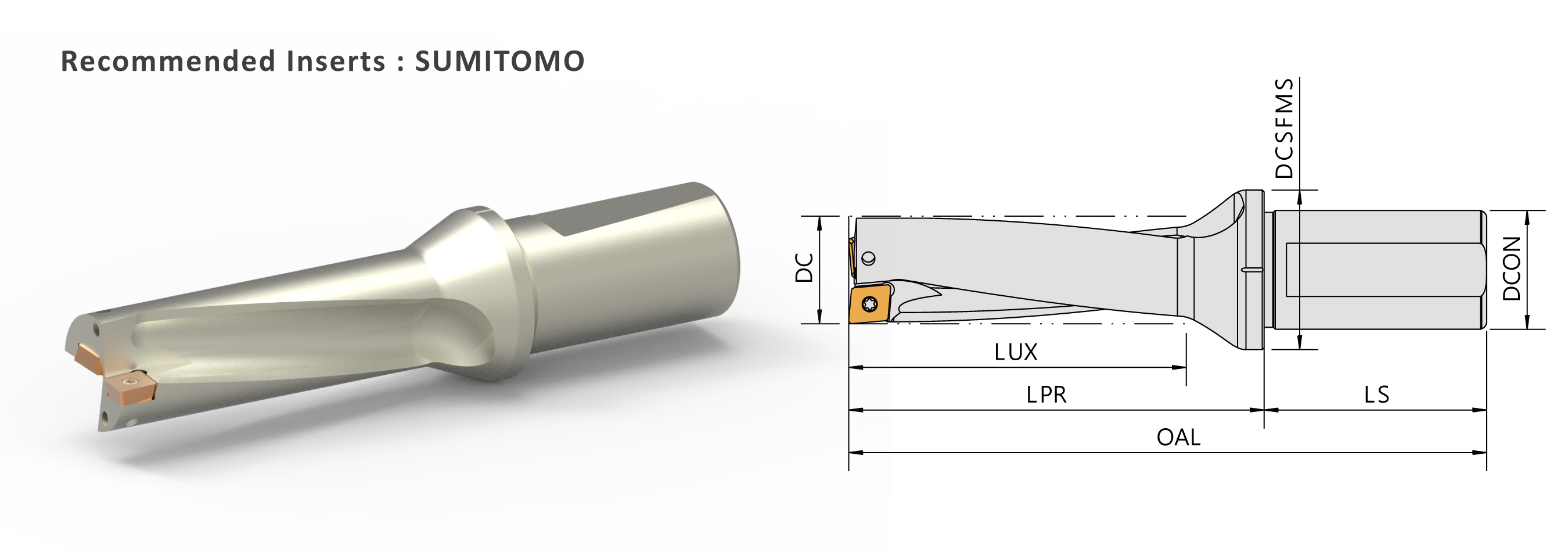

▼Recommended Inserts: SUMITOMO

Order No.	Insert	Dimensions(mm)								Screw	Wrench
Right / Left		DC	DCON	DCSFMS	LUX	OAL	LPR	LS	Fig
WDX130D4S20N	WDXT042004	13.0	20	28	55	114	70	44	1	CS16045	FT-6	-
WDX135D4S20N	WDXT042004	13.5	20	28	57	116	72	44	1	CS16045	FT-6	-
WDX140D4S20N	WDXT042004	14.0	20	28	59	118	74	44	1	CS16045	FT-6	-
WDX145D4S20N	WDXT042004	14.5	20	28	61	120	76	44	1	CS16045	FT-6	-
WDX150D4S20N	WDXT042004	15.0	20	28	63	122	78	44	1	CS16045	FT-6	-
WDX155D4S20N	WDXT052504	15.5	20	28	65	124	80	44	1	CS20047	FT-6	-
WDX160D4S20N	WDXT052504	16.0	20	28	67	126	82	44	1	CS20047	FT-6	-
WDX165D4S20N	WDXT052504	16.5	20	28	69	128	84	44	1	CS20047	FT-6	-
WDX170D4S20N	WDXT052504	17.0	20	28	71	130	86	44	1	CS20047	FT-6	-
WDX175D4S25N	WDXT052504	17.5	25	33	73	144	88	56	1	CS20047	FT-6	-
WDX180D4S25N	WDXT052504	18.0	25	33	75	146	90	56	1	CS20047	FT-6	-
WDX185D4S25N	WDXT063006	18.5	25	33	77	148	92	56	1	CS22060	-	DT-7
WDX190D4S25N	WDXT063006	19.0	25	33	79	150	94	56	1	CS22060	-	DT-7
WDX195D4S25N	WDXT063006	19.5	25	33	81	152	96	56	1	CS22060	-	DT-7
WDX200D4S25N	WDXT063006	20.0	25	33	83	154	98	56	1	CS22060	-	DT-7
WDX205D4S25N	WDXT063006	20.5	25	33	85	156	100	56	1	CS22060	-	DT-7
WDX210D4S25N	WDXT063006	21.0	25	33	87	158	102	56	1	CS22060	-	DT-7
WDX215D4S25N	WDXT063006	21.5	25	33	89	160	104	56	1	CS22060	-	DT-7
WDX220D4S25N	WDXT063006	22.0	25	33	91	162	106	56	1	CS22060	-	DT-7
WDX225D4S25N	WDXT063006	22.5	25	33	93	164	108	56	1	CS22060	-	DT-7
WDX230D4S25N	WDXT073506	23.0	25	33	95	169	113	56	1	CS25055/ CS25052S	-	DBIT-T8
WDX235D4S25N	WDXT073506	23.5	25	33	97	171	115	56	1		-	DBIT-T8
WDX240D4S25N	WDXT073506	24.0	25	33	99	173	117	56	1		-	DBIT-T8
WDX245D4S25N	WDXT073506	24.5	25	33	101	175	119	56	1		-	DBIT-T8
WDX250D4S25N	WDXT073506	25.0	25	33	103	177	121	56	1		-	DBIT-T8
WDX255D4S32N	WDXT073506	25.5	32	41	105	185	125	60	2		-	DBIT-T8
WDX260D4S32N	WDXT073506	26.0	32	41	107	187	127	60	2		-	DBIT-T8
WDX265D4S32N	WDXT073506	26.5	32	41	109	189	129	60	2		-	DBIT-T8
WDX270D4S32N	WDXT073506	27.0	32	41	111	191	131	60	2		-	DBIT-T8
WDX275D4S32N	WDXT073506	27.5	32	41	113	193	133	60	2		-	DBIT-T8
WDX280D4S32N	WDXT073506	28.0	32	41	115	195	135	60	2		-	DBIT-T8
WDX285D4S32N	WDXT073506	28.5	32	41	117	197	137	60	2		-	DBIT-T8
WDX290D4S32N	WDXT094008	29.0	32	41	120	201	141	60	2	CS35095	-	DBIT-T15
WDX295D4S32N	WDXT094008	29.5	32	41	122	203	143	60	2	CS35095	-	DBIT-T15
WDX300D4S32N	WDXT094008	30.0	32	41	124	208	148	60	2	CS35095	-	DBIT-T15
WDX310D4S32N	WDXT094008	31.0	32	41	128	212	152	60	2	CS35095	-	DBIT-T15
WDX320D4S32N	WDXT094008	32.0	32	41	132	216	156	60	2	CS35095	-	DBIT-T15
WDX330D4S40N	WDXT094008	33.0	40	54	136	230	160	70	2	CS35095	-	DBIT-T15
WDX340D4S40N	WDXT094008	34.0	40	54	140	234	164	70	2	CS35095	-	DBIT-T15
WDX350D4S40N	WDXT094008	35.0	40	54	144	238	168	70	2	CS35095	-	DBIT-T15
WDX360D4S40N	WDXT094008	36.0	40	54	148	242	172	70	2	CS35095	-	DBIT-T15
WDX370D4S40N	WDXT125012	37.0	40	54	153	253	183	70	2	CS50100	-	DBIT-T20
WDX380D4S40N	WDXT125012	38.0	40	54	157	257	187	70	2	CS50100	-	DBIT-T20
WDX390D4S40N	WDXT125012	39.0	40	54	161	261	191	70	2	CS50100	-	DBIT-T20
WDX400D4S40N	WDXT125012	40.0	40	54	165	265	195	70	2	CS50100	-	DBIT-T20
WDX410D4S40N	WDXT125012	41.0	40	54	169	269	199	70	2	CS50100	-	DBIT-T20
WDX420D4S40N	WDXT125012	42.0	40	54	173	273	203	70	2	CS50100	-	DBIT-T20
WDX430D4S40N	WDXT125012	43.0	40	54	177	277	207	70	2	CS50100	-	DBIT-T20
WDX440D4S40N	WDXT125012	44.0	40	54	181	281	211	70	2	CS50100	-	DBIT-T20
WDX450D4S40N	WDXT125012	45.0	40	54	185	285	215	70	2	CS50100	-	DBIT-T20
