▼FACE MILL INTERCHANGEABLE CASSETTES
HIGH-STRENGTH ALUMINIUM BODY FOR EASY
AND PRECISE ADJUSTMENT.

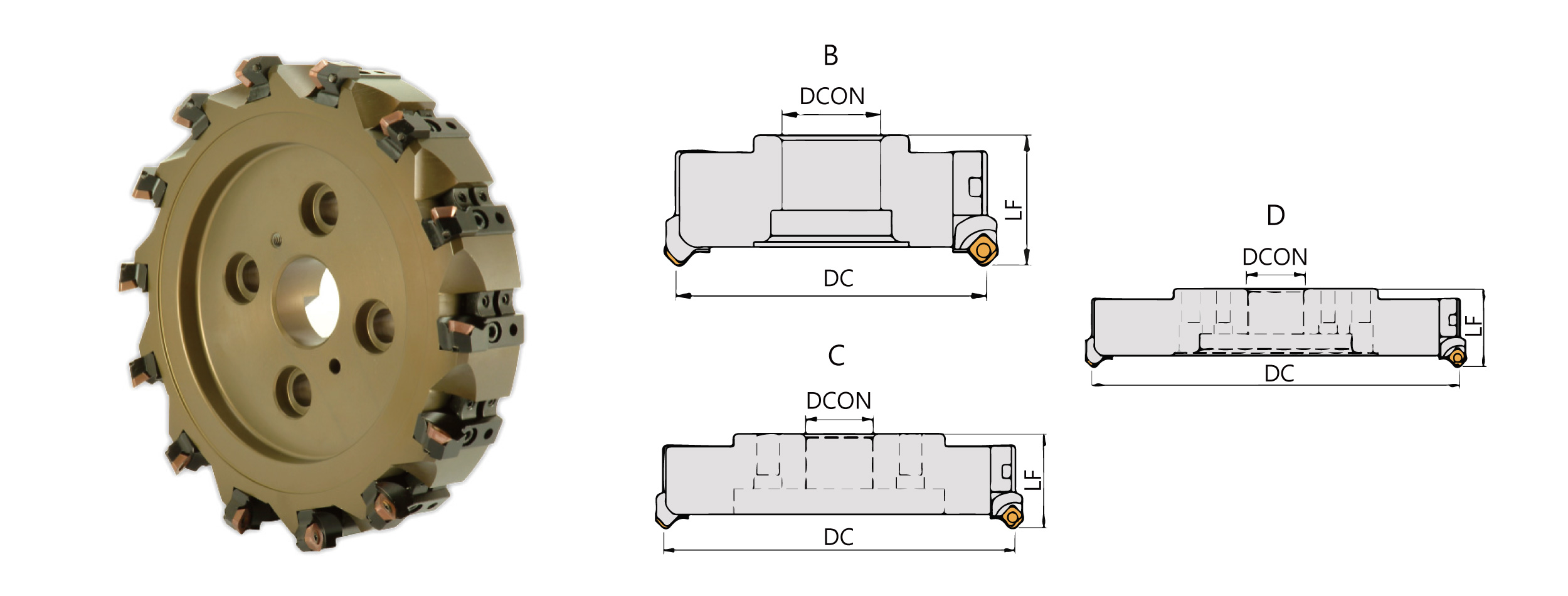

| Order No. | Dimensions(mm) | ||||
|---|---|---|---|---|---|
| Right / Left | DC | LF | DCON | DCON(inch) | I No. |
| F125B06R-Cassettes | 125 | 65 | 40 | 1-1/2" | 6 |
| F160B08R-Cassettes | 160 | 65 | 40 | 2" | 8 |
| F200C10R-Cassettes | 200 | 65 | 60 | 1-7/8" | 10 |
| F250C14R-Cassettes | 250 | 65 | 60 | 1-7/8" | 14 |
| F315D16R-Cassettes | 315 | 73 | 60 | 1-7/8" | 16 |
| F360D18R-Cassettes | 360 | 73 | 60 | 1-7/8" | 18 |
| Order No. | Insert | Insert Clamping Screw | Insert Wrench |
|---|---|---|---|
| Right / Left | - |  |
 |
| S45SE12 | SEHW1204 SEKT1204 |
CS45110 | DBIT-T15 |
| S90AP16 | SUMITOMO APMT1605 |
CS35090 | DBIT-T15 |
| S90AP1604 | MITSUBISHI APMT1604 |
CS40090 | DBIT-T15 |
| SMORP12 | MITSUBISHI RPMT1204 |
CS35090 | DBIT-T15 |
| S75SP12 | SPMN1203 | CP50-26 CS7-5018 |
LW030 |
| PARTS | Clamping Screw | Micro Adjusting Pin | Cassettes Clamp | Locking Screw | Wrench |
| CS70-12 | AP-01 | CP50-9 | CS7-6016 | LW025 |
