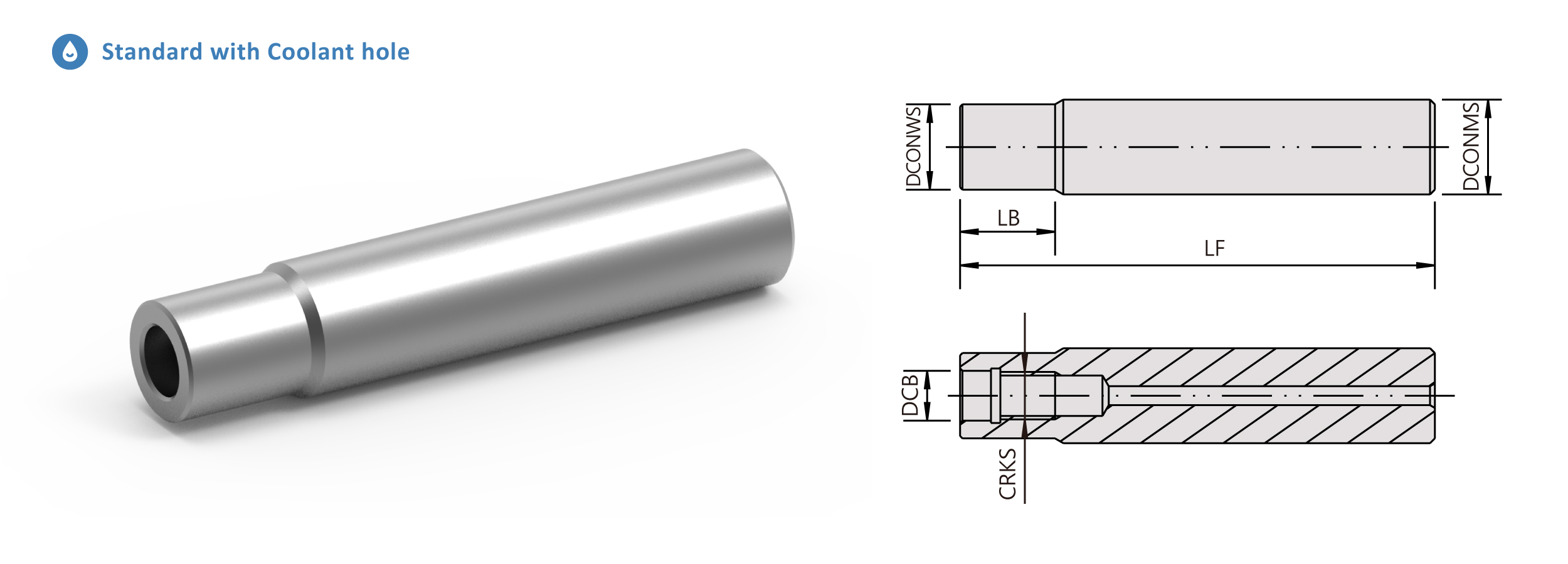

▼Standard with Coolant hole
| Order No. | Dimensions(mm) | |||||
|---|---|---|---|---|---|---|
| Right / Left | DCONMS | LF | CRKS | DCB | LB | DCONWS |
| HML10M05-120 | 10 | 120 | M5 | 5.5 | 10 | 8 |
| HML12M06-100 | 12 | 100 | M6 | 6.5 | 12 | 10 |
| HML12M06-150 | 150 | |||||
| HML16M08-100 | 16 | 100 | M8 | 8.5 | 16 | 14 |
| HML16M08-150 | 150 | |||||
| HML20M10-100 | 20 | 100 | M10 | 10.5 | 20 | 18 |
| HML20M10-150 | 150 | |||||
| HML20M10-200 | 200 | |||||
| HML25M12-100 | 25 | 100 | M12 | 12.5 | 25 | 23 |
| HML25M12-150 | 150 | |||||
| HML25M12-200 | 200 | |||||
| HML25M12-250 | 250 | |||||
| HML32M16-150 | 32 | 150 | M16 | 17 | 32 | 30 |
| HML32M16-200 | 200 | |||||
| HML32M16-250 | 250 | |||||
| HML32M16-300 | 300 | |||||
