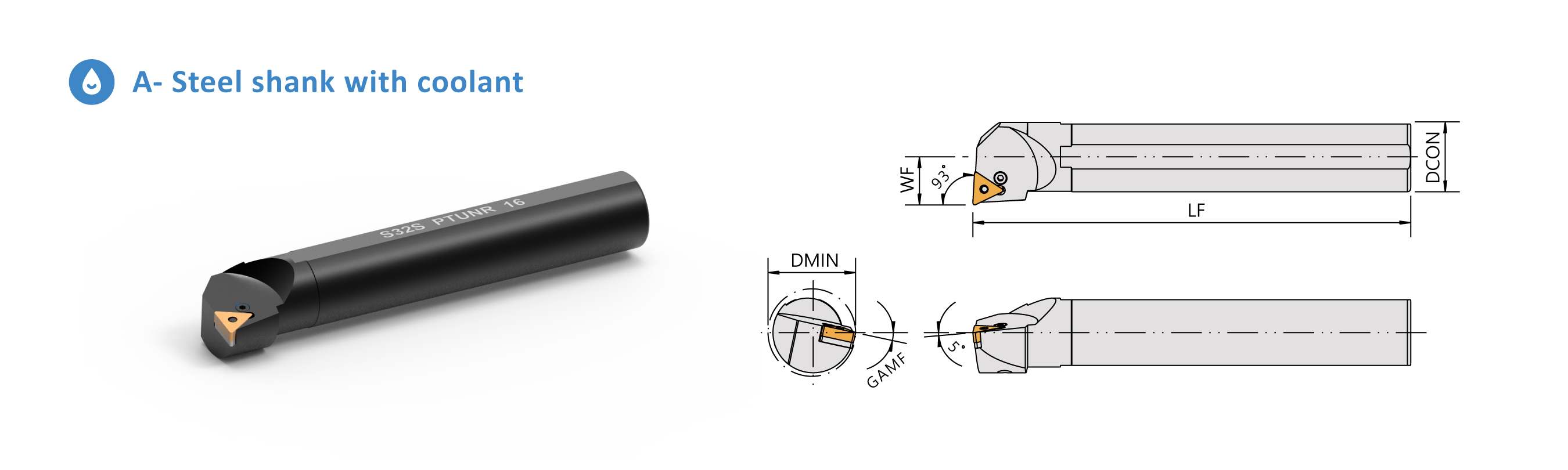

Boring Bars S-PTUN 93°

Please click the picture to enlarge.

Specification

Oder No.InsertDimensions(mm)PartsWrench
Right / Left DCON WF LF DMIN GAMF
S20R-PTUNR/L16 TNMG1604 20 13 200 25 18° SMT-31T CS-LSP3 CP-LL6 CS-LS6 LW030
S25R-PTUNR/L16 TNMG1604 25 17 200 30 15° SMT-31T CS-LSP3 CP-LL3 CS-LS3 LW025
S32S-PTUNR/L16 TNMG1604 32 22 250 40 12° SMT-31T CS-LSP3 CP-LL3 CS-LS3 LW025
S40T-PTUNR/L16 TNMG1604 40 27 300 48 10° SMT-31T CS-LSP3 CP-LL3 CS-LS3 LW025
