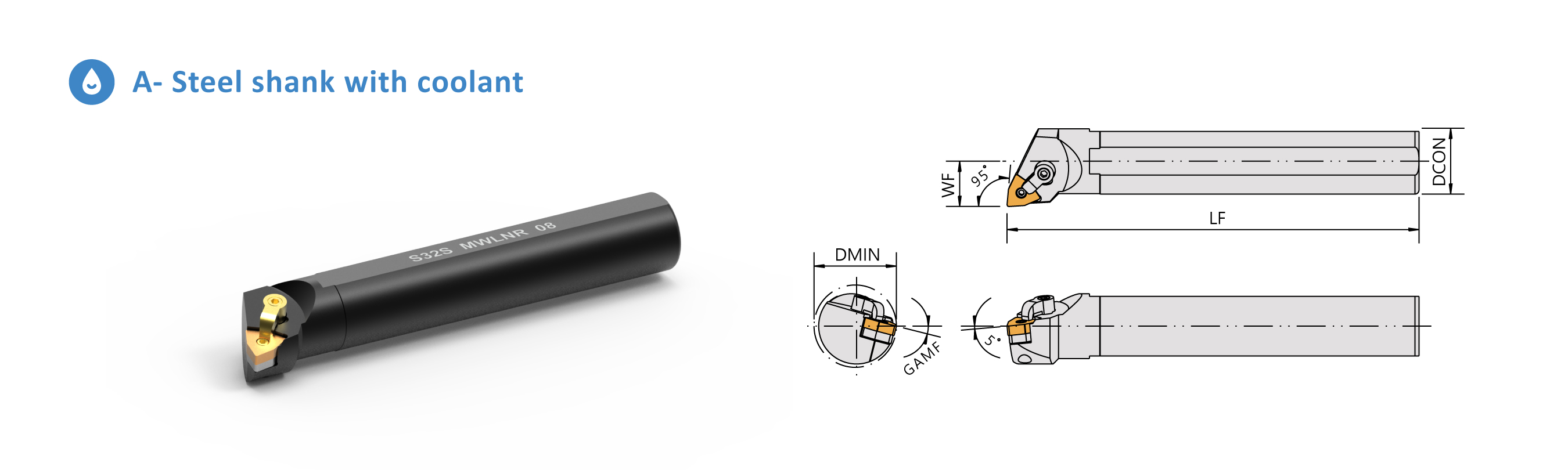

Boring Bars S-MWLN 95°

Please click the picture to enlarge.

Specification

Order No.InsertDimensionsPartsWrench
Right / Left DCON WF LF DMIN GAMF
S16Q-MWLNR/L06 WNMG0604 16 11 180 22 18° - LCS-510 CP50-26 CS7-5018 LW020 LW025
S20R-MWLNR/L08 WNMG0804 20 13 200 25 17° - LCS-511 CP50-26 CS7-5018 - LW025
S25R-MWLNR/L08 WNMG0804 25 17 200 32 14° - LCS-511 CP50-22 CS7-6024 LW025 LW030
S32S-MWLNR/L08 WNMG0804 32 22 250 40 14° SMV-432 LCS-617 CP50-22 CS7-6030 - LW030
S40T-MWLNR/L08 WNMG0804 40 27 300 50 12° SMV-432 LCS-617 CP50-22 CS7-6030 - LW030
S50U-MWLNR/L08 WNMG0804 50 35 350 63 12° SMV-432 LCS-617 CP50-22 CS7-6030 - LW030
S63Y-MWLNR/L08 WNMG0804 63 38 500 75 10° SMV-432 LCS-617 CP50-22 CS7-6030 - LW030
