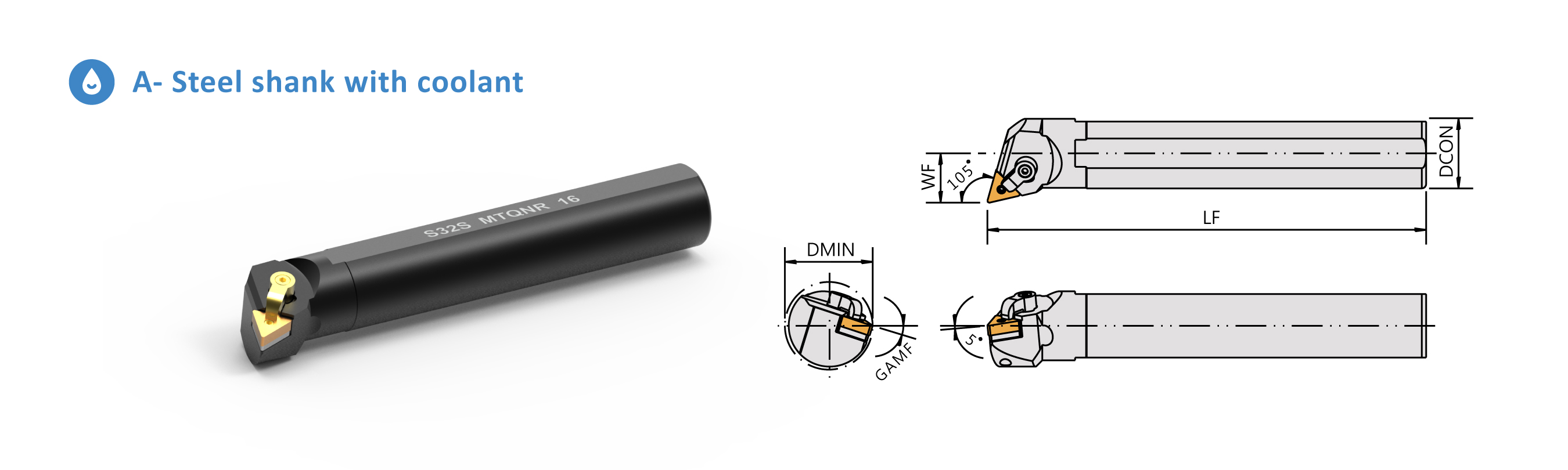

Boring Bars S-MTQN 105°

Please click the picture to enlarge.

Specification

Order No.InsertDimensionsPartsWrench
Right / Left DCON WF LF DMIN GAMF
S20R-MTQNR/L16 TNMG1604 20 12.5 200 25 15° - LCS-510 CP50-26 CS7-5018 LW020 LW025
S25R-MTQNR/L16 TNMG1604 25 16 200 32 12° - LCS-510 CP50-22 CS7-6024 LW020 LW030
S32S-MTQNR/L16 TNMG1604 32 22.5 250 40 17° SMT-322 LCS-513 CP50-22 CS7-6024 LW020 LW030
S40T-MTQNR/L16 TNMG1604 40 26.5 300 50 15° SMT-322 LCS-513 CP50-22 CS7-6030 LW020 LW030
S50U-MTQNR/L16 TNMG1604 50 31 350 63 12° SMT-322 LCS-513 CP50-22 CS7-6030 LW030 LW030
