| Order No. | Insert | Dimensions(mm) | Shim | Shim Screw | Clamp | Spring | Clamp Screw | Wrench | Connection Screw | Center Pin | Wrench | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Right/Left |  |

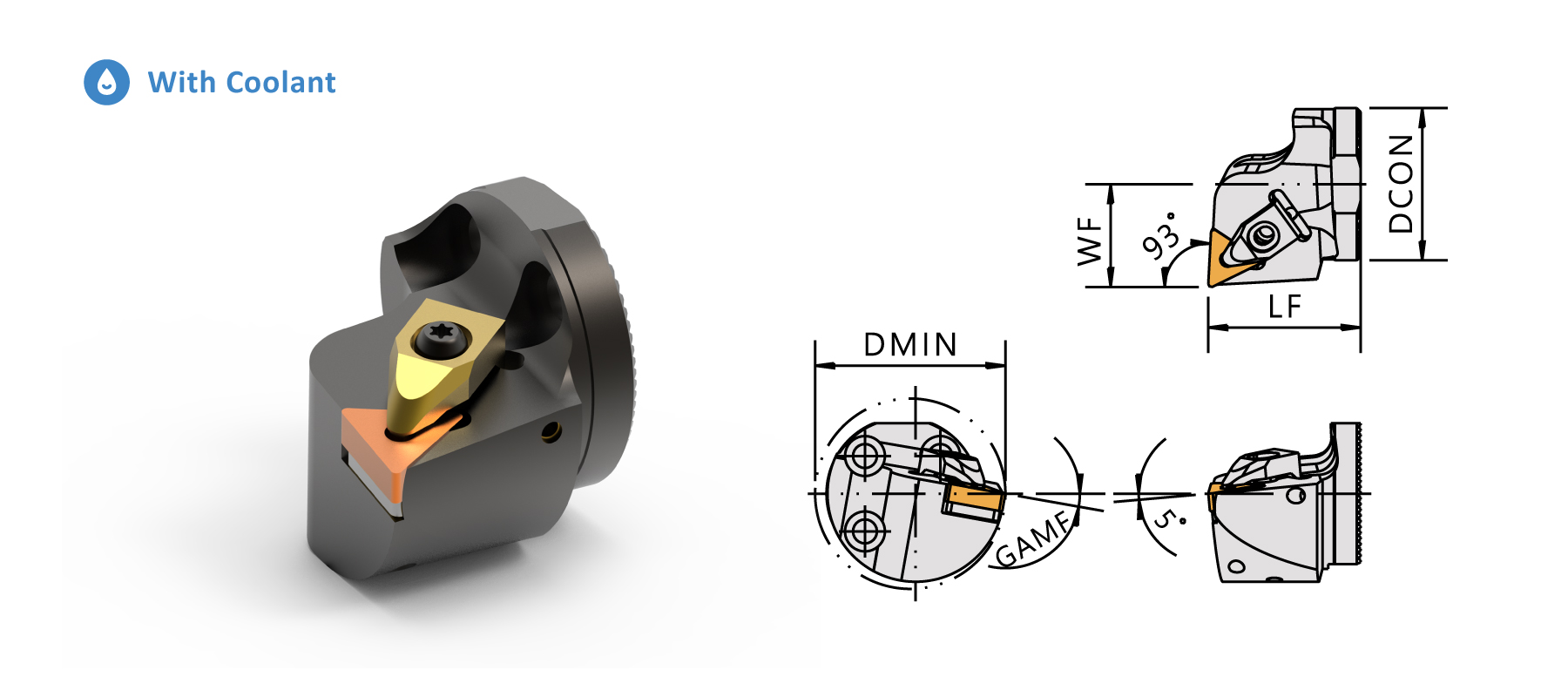

DCON | WF | LF | DMIN | GAMF |  |
 |
 |
 |
 |
 |
 |
 |
 |
| 570-DTUNR-40-16 | TNMG1604 | 40 | 27 | 38 | 50 | 10° | SMT-323 | CSA40075 | CP-D2 | SP0612 | CSB4015T | TL15 | CSH0620 | WSD6-570 | LW050 |
