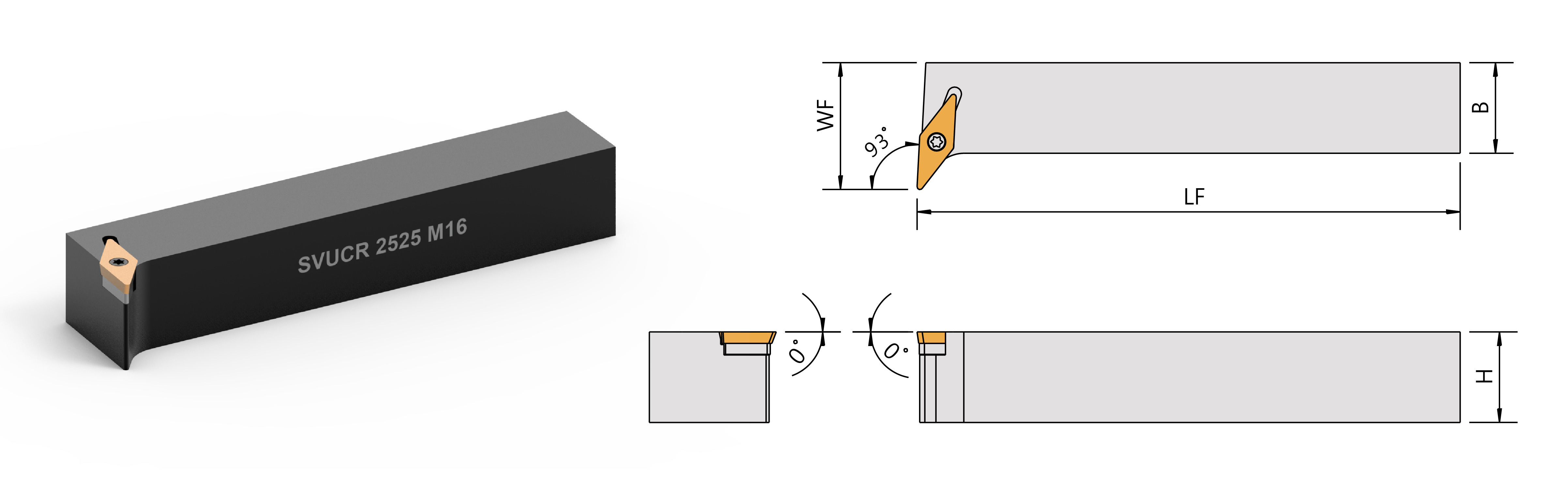

External Turning Tools SVUC 93°

Please click the picture to enlarge.

Specification

Order No.InsertDimensions(mm)PartsWrench
Right/Left H B LF WF
SVUCR/L-1616H11 VCMT1103 16 16 100 24 - - CS25060 FT-7 -
SVUCR/L-1616H16 VCMT1604 16 16 100 30 SMV-321 SN535 CS35115 FT-15 LW035
SVUCR/L-2020K16 VCMT1604 20 20 125 30 SMV-321 SN535 CS35115 FT-15 LW035
SVUCR/L-2525M16 VCMT1604 25 25 150 35 SMV-321 SN535 CS35115 FT-15 LW035
SVUCR/L-3225S16 VCMT1604 32 25 250 32 SMV-321 SN535 CS35115 FT-15 LW035
