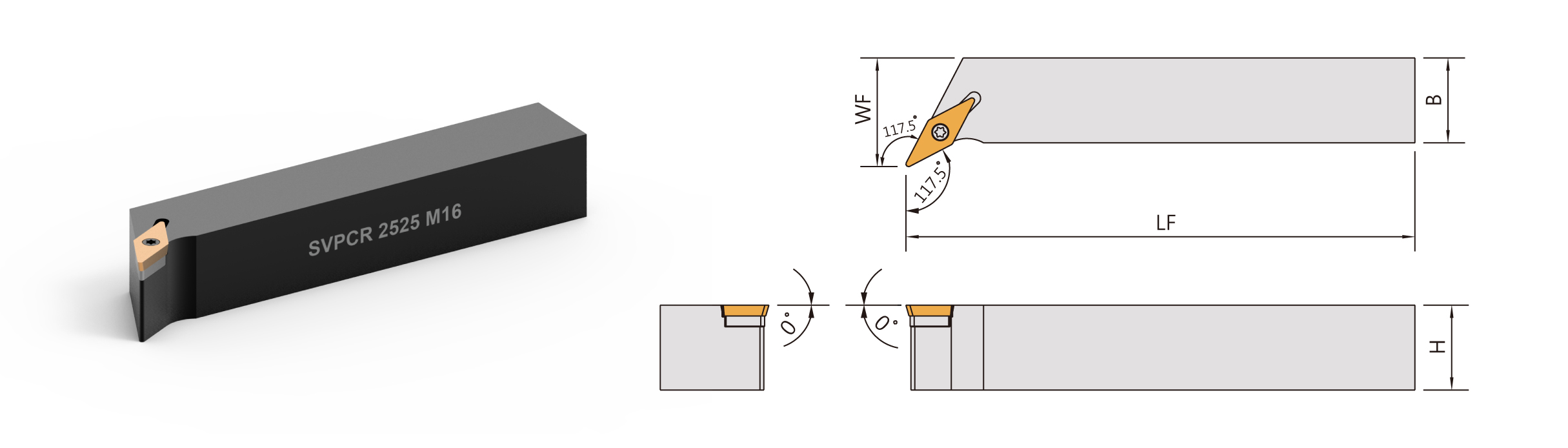

| Order No. | Insert | Dimensions(mm) | Parts | Wrench | ||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Right/Left |  |
H | B | LF | WF |  |
 |
 |
 |
 |
| SVPCR/L-1010H11 | VCMT1103 | 10 | 10 | 100 | 14.5 | - | - | CS25061S | FT-7 | - |
| SVPCR/L-1212H11 | VCMT1103 | 12 | 12 | 100 | 16.5 | - | - | CS25061S | FT-7 | - |
| SVPCR/L-1616H11 | VCMT1103 | 16 | 16 | 100 | 20.5 | - | - | CS25061S | FT-7 | - |
| SVPCR/L-2020K16 | VCMT1604 | 20 | 20 | 125 | 25 | SMV-321 | SN535 | CS35119S | FT-15 | LW035 |
| SVPCR/L-2525M16 | VCMT1604 | 25 | 25 | 150 | 32 | SMV-321 | SN535 | CS35119S | FT-15 | LW035 |
