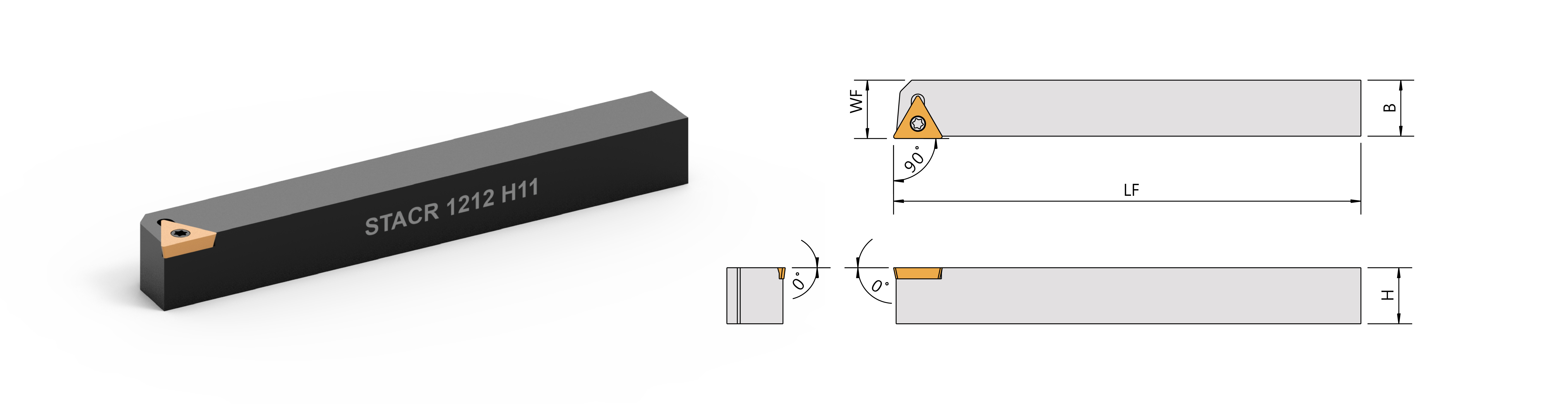

External Turning Tools STAC 90°

Please click the picture to enlarge.

Specification

Order No.InsertDimensions(mm)PartsWrench
Right/Left H B LF WF
STACR/L-0808H09 TCMT0902 8 8 100 8.5 CS22050 FT-7
STACR/L-1010H09 TCMT0902 10 10 100 10.5 CS22050 FT-7
STACR/L-1212H11 TCMT1102 12 12 100 12.5 CS25061S FT-7
STACR/L-1616H11 TCMT1102 16 16 100 16.5 CS25061S FT-7
