External Turning Tools SRGC 0°

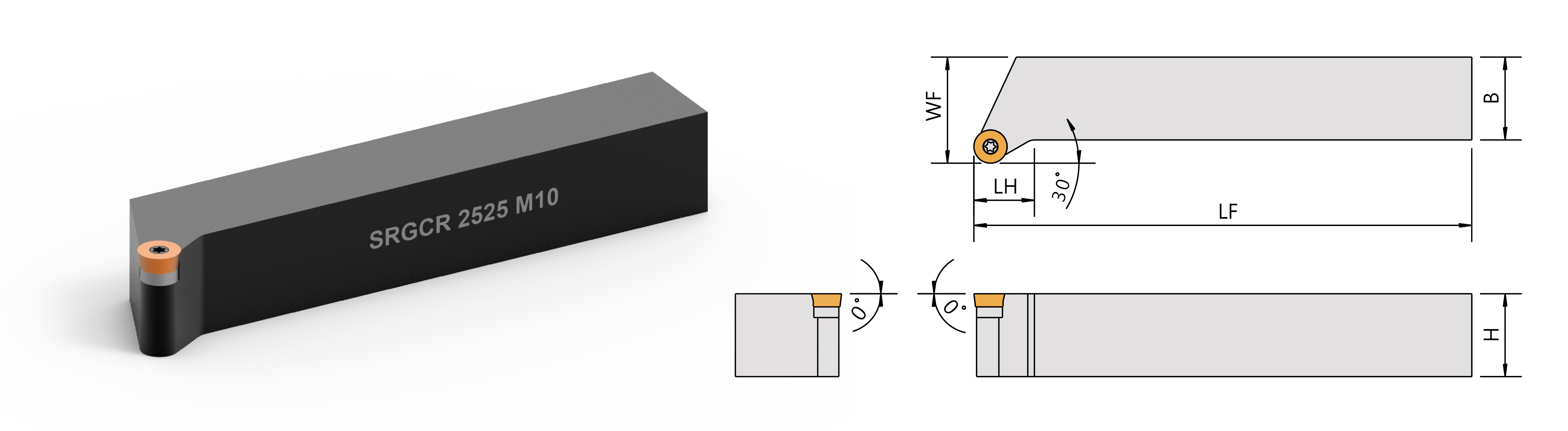

Please click the picture to enlarge.

Specification

Order No.InsertDimensions(mm)PartsWrench
Right/Left H B LF LH WF
SRGCR/L-1212H05 RCMT0502 12 12 100 10.5 16 CS25050 FT-7
SRGCR/L-1616H05 RCMT0502 16 16 100 10.5 20 CS25050 FT-7
SRGCR/L-2020K05 RCMT0502 20 20 125 12 25 CS25050 FT-7
SRGCR/L-2525M05 RCMT0502 25 25 150 15.5 32 CS25050 FT-7
SRGCR/L-1212H06 RCMT0602 12 12 100 10.5 16 CS25060 FT-7
SRGCR/L-1616H06 RCMT0602 16 16 100 10.5 20 CS25060 FT-7
SRGCR/L-2020K06 RCMT0602 20 20 125 12.5 25 CS25060 FT-7
SRGCR/L-2525M06 RCMT0602 25 25 150 16 32 CS25060 FT-7
SRGCR/L-1616H08 RCMT0803 16 16 100 11.5 20 CS30070 FT-10
SRGCR/L-2020K08 RCMT0803 20 20 125 14 25 CS30070 FT-10
SRGCR/L-2525M08 RCMT0803 25 25 150 17 32 CS30070 FT-10
SRGCR/L-2020K1003 RCMT1003(MITSUBISHI) 20 20 125 15 25 CS30070 FT-10
SRGCR/L-2525M1003 RCMT1003(MITSUBISHI) 25 25 125 18.5 32 CS30070 FT-10



Order No.InsertDimensions(mm)PartsWrench
Right/Left H B LF LH WF
SRGCR/L-2020K10 RCMT10T3 20 20 125 15 25 SMR-1003 SN535 CS35115 FT-15 LW035
SRGCR/L-2525M10 RCMT10T3 25 25 150 18.5 32 SMR-1003 SN535 CS35115 FT-15 LW035
