External Turning Tools SRDC 0°

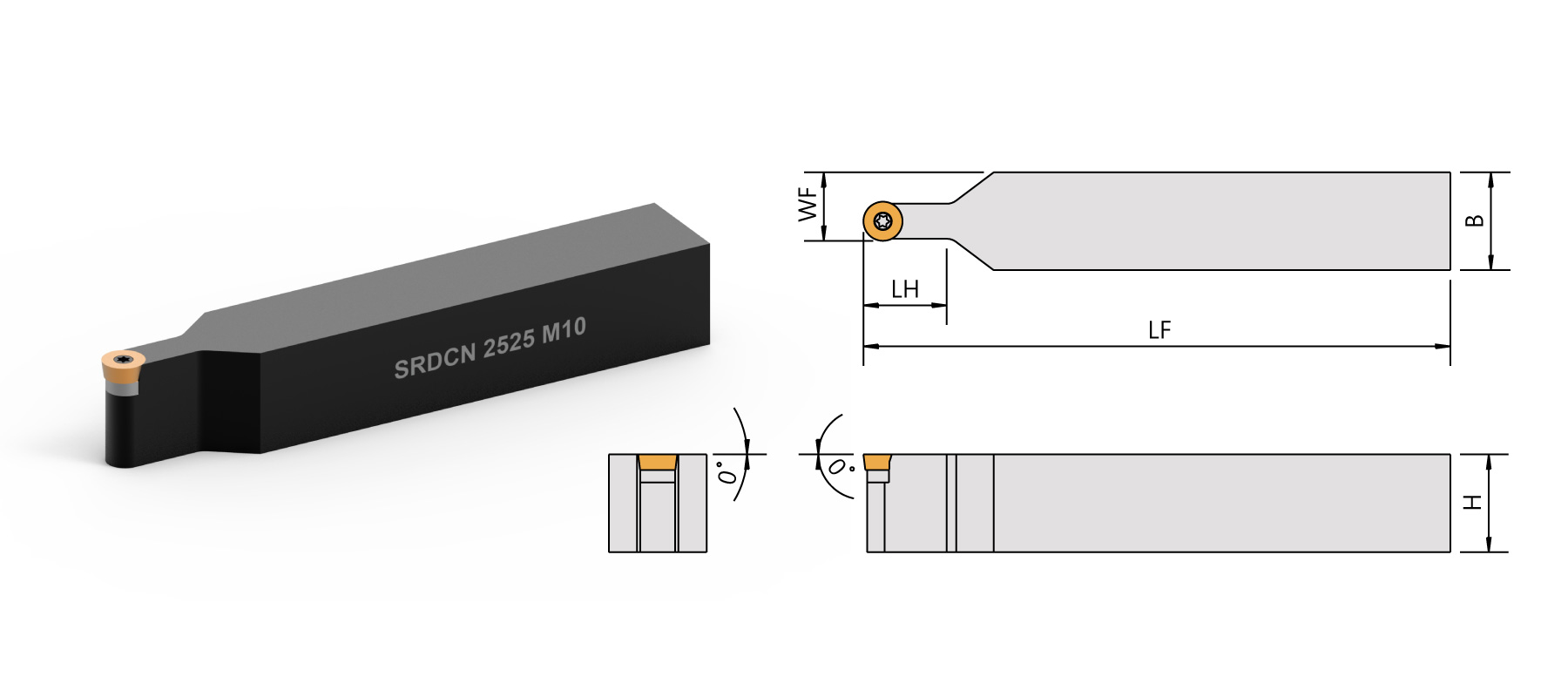

Please click the picture to enlarge.

Specification

Order No.InsertDimensions(mm)PartsWrench
Right/Left H B LF LH WF
SRDCN-0808H06 RCMT0602 8 8 100 12 7 CS25060 FT-7
SRDCN-1010H06 RCMT0602 10 10 100 12 8 CS25060 FT-7
SRDCN-1212H06 RCMT0602 12 12 100 12 9 CS25060 FT-7
SRDCN-1616H06 RCMT0602 16 16 100 12 11 CS25060 FT-7
SRDCN-1212H08 RCMT0803 12 12 100 16 9 CS30070 FT-10
SRDCN-1616H08 RCMT0803 16 16 100 16 12 CS30070 FT-10
SRDCN-2020K08 RCMT0803 20 20 125 16 14 CS30070 FT-10
SRDCN-2525M08 RCMT0803 25 25 150 16 16.5 CS30070 FT-10
SRDCN-1616H1003 RCMT1003(MITSUBISHI) 16 16 100 20.3 13 CS30070 FT-10
SRDCN-2020K1003 RCMT1003(MITSUBISHI) 20 20 125 20.3 15 CS30070 FT-10
SRDCN-2525M1003 RCMT1003(MITSUBISHI) 25 25 150 20.3 17.5 CS30070 FT-10
SRDCN-3232P16 RCMT1606 32 32 170 32 24 CS50130 FT-20



Order No.InsertDimensions(mm)PartsWrench
Right/Left H B LF LH WF
SRDCN1616H10 RCMT10T3 16 16 100 20.3 13 SMR-1003 SN535 CS35115 FT-15 LW035
SRDCN2020K10 RCMT10T3 20 20 125 20.3 15 SMR-1003 SN535 CS35115 FT-15 LW035
SRDCN2525M10 RCMT10T3 25 25 150 20.3 17.5 SMR-1003 SN535 CS35115 FT-15 LW035
SRDCN2020K12 RCMT1204 20 20 125 24 16 SMR-1203 SN535 CS35115 FT-15 LW035
SRDCN2525M12 RCMT1204 25 25 150 24 18.5 SMR-1203 SN535 CS35115 FT-15 LW035
