External Turning Tools SDAC 90°

Download
Inquiry
Back

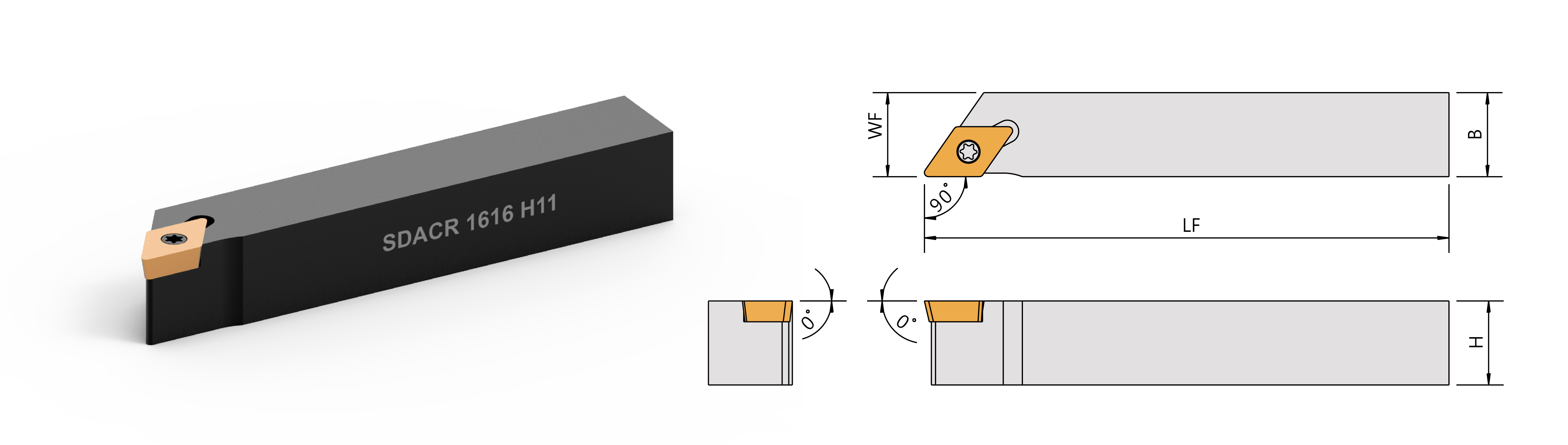

Please click the picture to enlarge.

Specification

Order No.InsertDimensions(mm)PartsWrench
Right/Left H B LF F
SDACR/L-0808H07 DCMT0702 8 8 100 8 CS25060 FT-7
SDACR/L-1010H07 DCMT0702 10 10 100 10 CS25060 FT-7
SDACR/L-1212H07 DCMT0702 12 12 100 12 CS25060 FT-7
SDACR/L-0808K07 DCMT0702 8 8 125 8 CS25060 FT-7
SDACR/L-1010K07 DCMT0702 10 10 125 10 CS25060 FT-7
SDACR/L-1212K07 DCMT0702 12 12 125 12 CS25060 FT-7
SDACR/L-1212H11 DCMT11T3 12 12 100 12 CS35095 FT-15
SDACR/L-1616H11 DCMT11T3 16 16 100 16 CS35095 FT-15
SDACR/L-1212K11 DCMT11T3 12 12 125 12 CS35095 FT-15
SDACR/L-1616K11 DCMT11T3 16 16 125 16 CS35095 FT-15
SDACR/L-2020K11 DCMT11T3 20 20 125 20 CS35095 FT-15
SDACR/L-2525M11 DCMT11T3 25 25 150 25 CS35095 FT-15
