Helical Mills EM90AX

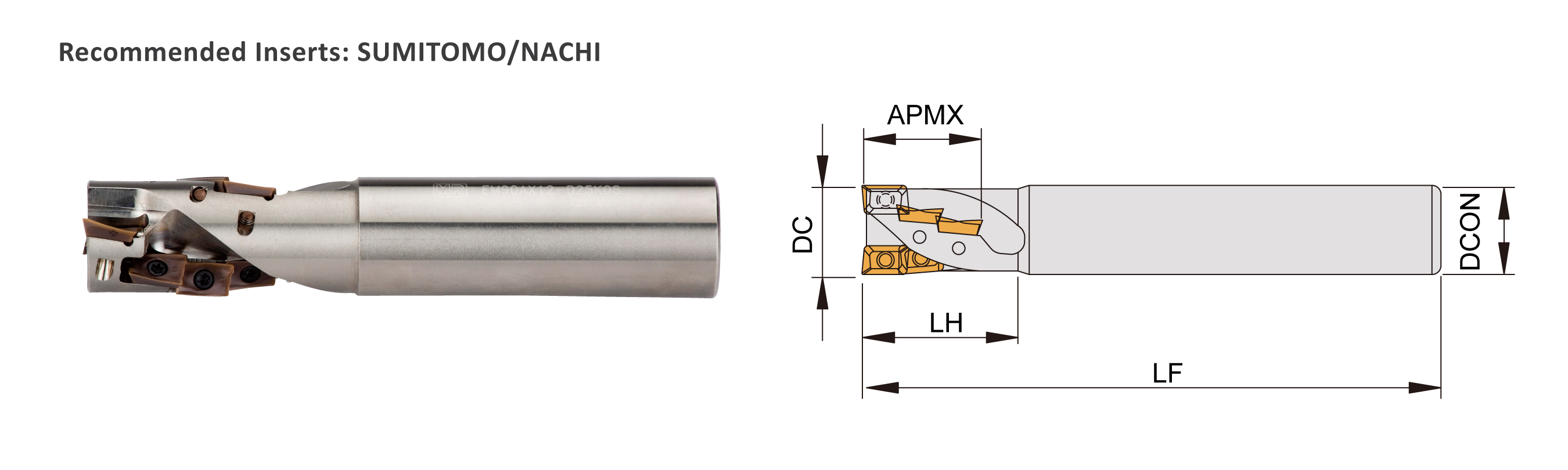

Please click the picture to enlarge.

▼Recommended Inserts : SUMITOMO/NACHI

Order No.	Insert	Dimensions(mm)							Screw	Wrench
Right / Left		DC	LF	LH	DCON	APMX	T No.	I No.
EM90AX12-D20X	AXMT1235	20	130	45	20	27	2	6	CS30063	DT-8
EM90AX12-D25		25	130	45	25	27	2	6		DT-8
EM90AX12-D32		32	130	45	32	27	3	9		DT-8
EM90AX12-D40		40	130	45	32	36	4	16		DT-8
EM90AX12-D20L		20	130	45	20	36	1	4		DT-8
EM90AX12-D20LX		20	130	45	25	36	2	8		DT-8
EM90AX12-D25L		25	130	45	25	36	2	8		DT-8
EM90AX12-D32L		32	150	65	32	45	3	15		DT-8
Order No.	Insert	Dimensions(mm)							Screw	Wrench
Right / Left		DC	LF	LH	DCON	APMX	T No.	I No.
EM90AX17-D32	AXMT1705	32	150	65	32	40	2	6	CS4009P	DBIT-TP15
EM90AX17-D40	AXMT1705	40	150	65	42	40	3	9	CS4009P	DBIT-TP15
EM90AX17-D50	AXMT1705	50	165	75	42	53	3	12	CS4009P	DBIT-TP15
