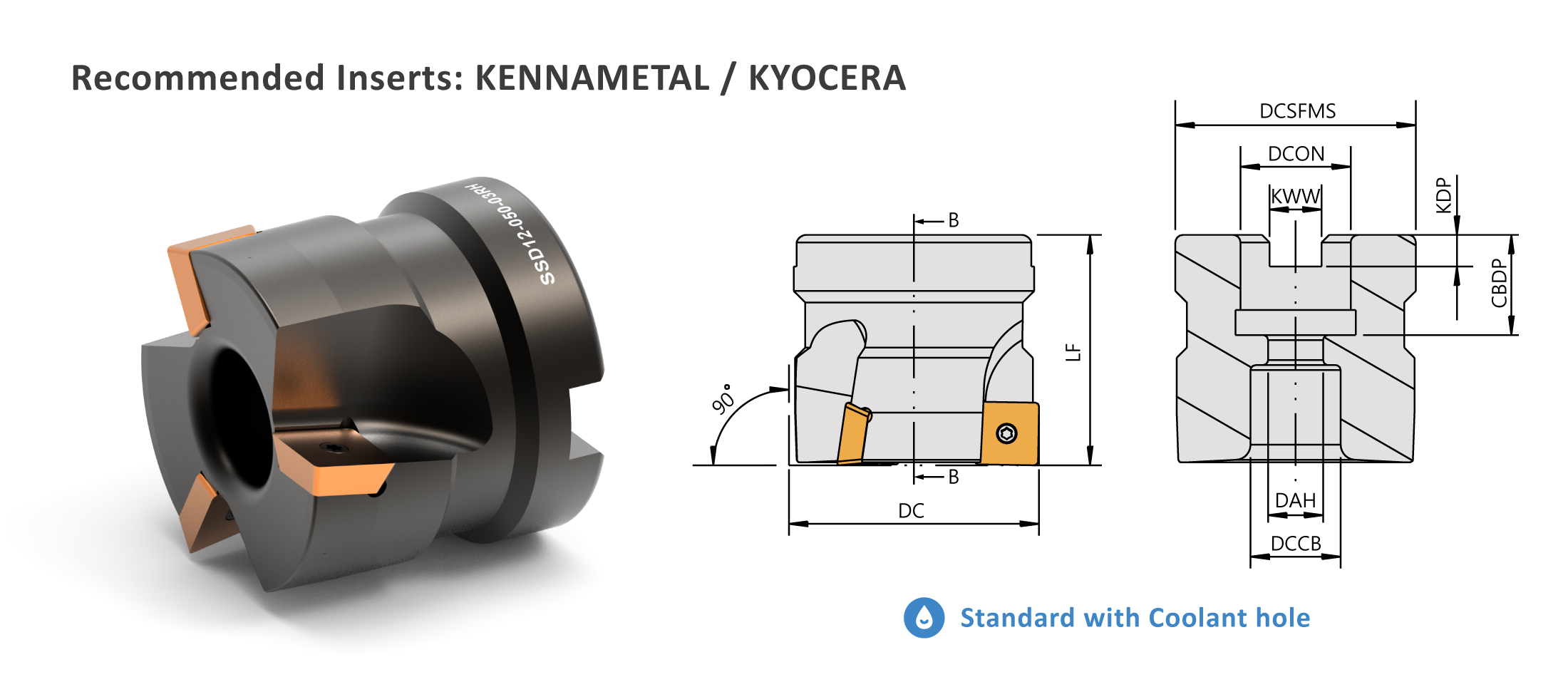

▼建議刀片品牌 : KENNAMETAL / KYOCERA
▼多刃型 / 無墊片
| Order No. | Insert | Dimensions(mm) | Screw | Wrench | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Right / Left |  |
刀徑 | 長度 | 孔徑 | 刃數 |  |
 |
||||
| DC | LF | DCON | DCON(inch) | I No. | |||||||
| SSD12-040-04RH | SDPT1204 SDMT1204 SDMT1205 |
40 | 40 | 16 | - | 4 | CS35115/ CS35119S |
DBIT-T15 | |||
| SSD12-050-05RH | 50 | 40 | 22 | - | 5 | DBIT-T15 | |||||
| SSD12-063-06RH | 63 | 40 | 22 | 1" | 6 | DBIT-T15 | |||||
| SSD12-080-07RH | 80 | 50 | 27 | 1" | 7 | DBIT-T15 | |||||
| SSD12-100-08RH | 100 | 50 | 32 | 1-1/4" | 8 | DBIT-T15 | |||||
※ Standard with Coolant hole 有油孔
