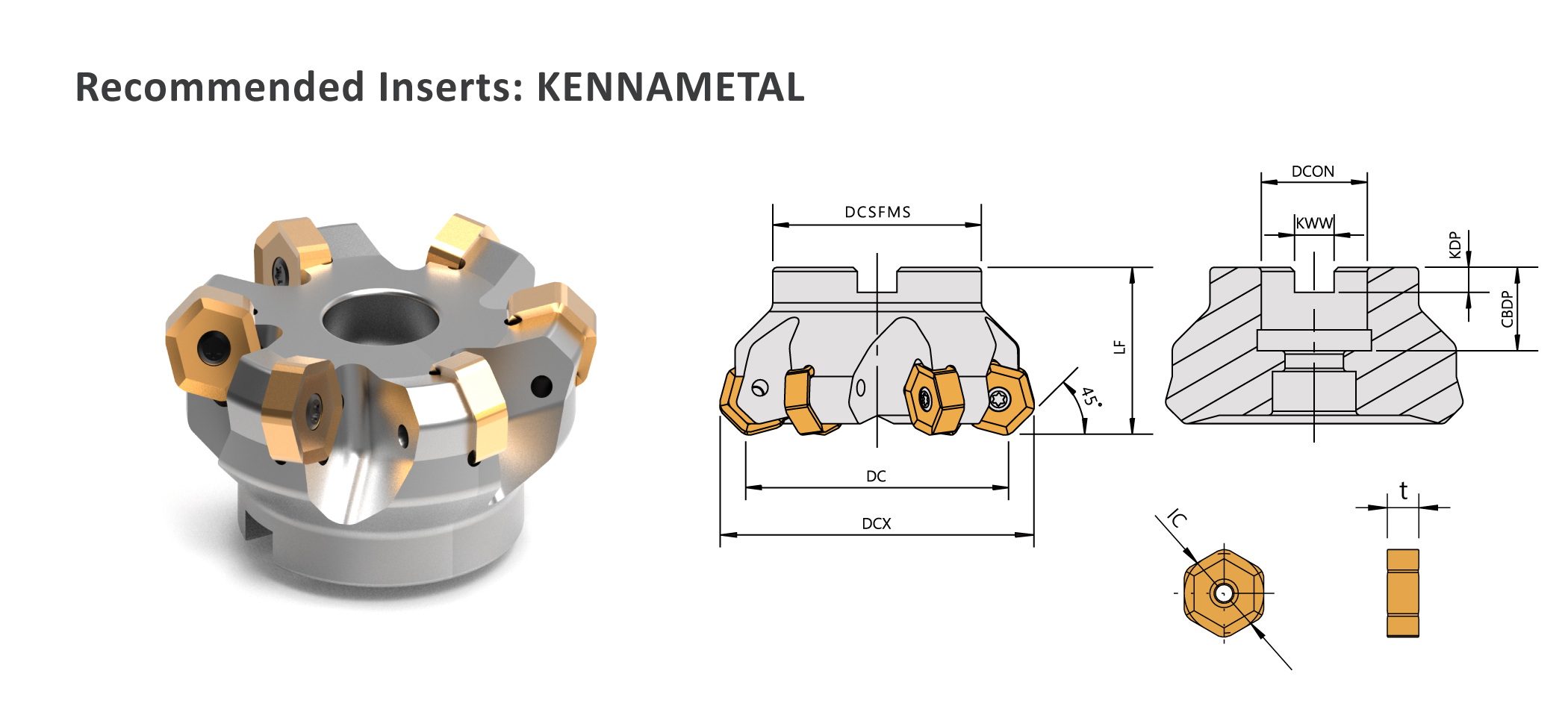

▼建議刀片品牌 : KENNAMETAL
| Order No. | Insert | Dimensions(mm) | Screw | Wrench | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Right / Left |  |
刀徑 | 長度 | 孔徑 | 刃數 | Arbor Type |  |
 |
||||
| DC | LF | DCON | DCON(inch) | I No. | ||||||||
| F45HN09-D050A04R/L | HNGJ0905 HNPJ0905 |
50 | 40 | 22 | - | 4 | Fig. 1 | CSR4010 | DBIT-T15 | |||
| F45HN09-D063A06R/L | HNGJ0905 HNPJ0905 |
63 | 40 | 22 | 1" | 6 | Fig. 1 | CSR4010 | DBIT-T15 | |||
| F45HN09-D080A06R/L | HNGJ0905 HNPJ0905 |
80 | 50 | 27 | 1" | 6 | Fig. 1 | CSR4010 | DBIT-T15 | |||
| F45HN09-D100B08R/L | HNGJ0905 HNPJ0905 |
100 | 50 | 32 | 1-1/4" | 8 | Fig. 2 | CSR4010 | DBIT-T15 | |||
| F45HN09-D125B10R/L | HNGJ0905 HNPJ0905 |
125 | 63 | 40 | 1-1/2" | 10 | Fig. 2 | CSR4010 | DBIT-T15 | |||
| F45HN09-D160C12R/L | HNGJ0905 HNPJ0905 |
160 | 63 | 40 | - | 12 | Fig. 3 | CSR4010 | DBIT-T15 | |||
