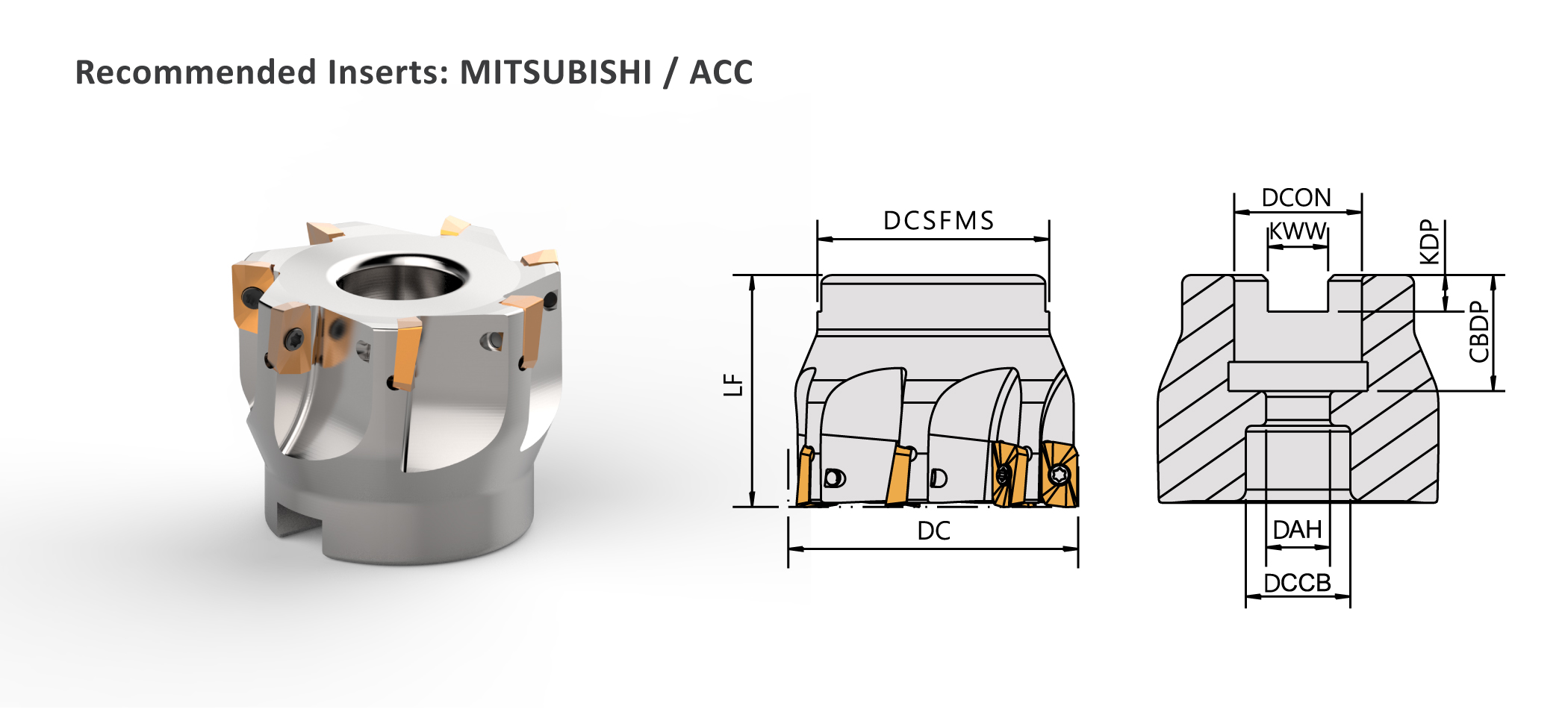

▼Recommended Inserts: MITSUBISHI / ACC
| Order No. | Insert | Dimensions(mm) | Screw | Wrench | ||||
|---|---|---|---|---|---|---|---|---|
| Right / Left |  |
刀徑 | 長度 | 孔徑 | 刃數 |  |
 |
|
| DC | LF | DCON | DCON(inch) | I No. | ||||
| BAP3-05007R | APGT1135 APMT1135 |
50 | 40 | 22 | - | 7 | CS25065/ CS25062S |
FT-8 |
| BAP3-06308R | 63 | 40 | 22 | 1" | 8 | |||
| BAP3-08009R | 80 | 50 | 27 | 1" | 9 | |||
| Order No. | Insert | Dimensions(mm) | Screw | Wrench | ||||
|---|---|---|---|---|---|---|---|---|
| Right / Left | |
刀徑 | 長度 | 孔徑 | 刃數 | |
|
|
| DC | LF | DCON | DCON(inch) | I No. | ||||
| BAP4-05005R | APGT1604 APMT1604 |
50 | 40 | 22 | - | 5 | CS40090 | DBIT-T15 |
| BAP4-06306R | 63 | 40 | 22 | 1" | 6 | |||
| BAP4-08007R | 80 | 50 | 27 | 1" | 7 | |||
| BAP4-10008R | 100 | 50 | 32 | 1-1/4" | 8 | |||
| BAP4-12509R | 125 | 50 | 40 | 1-1/2" | 9 | |||

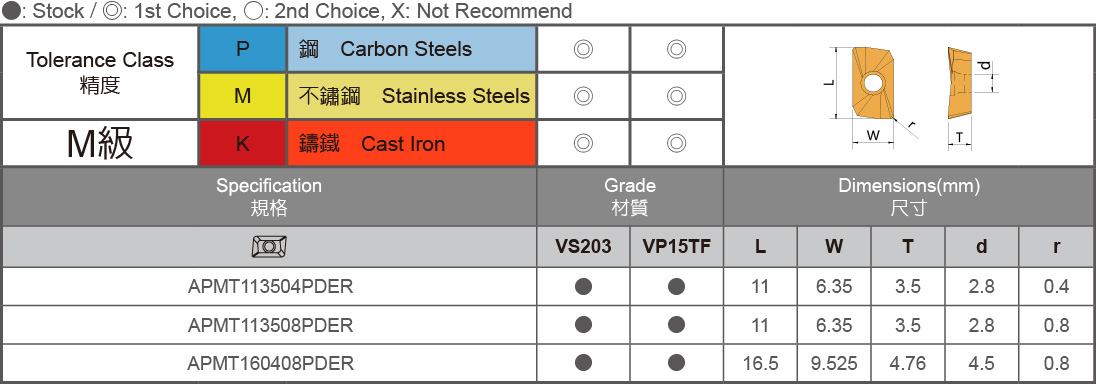

▼Recommended Inserts 刀片建議品牌: MITSUBISHI
