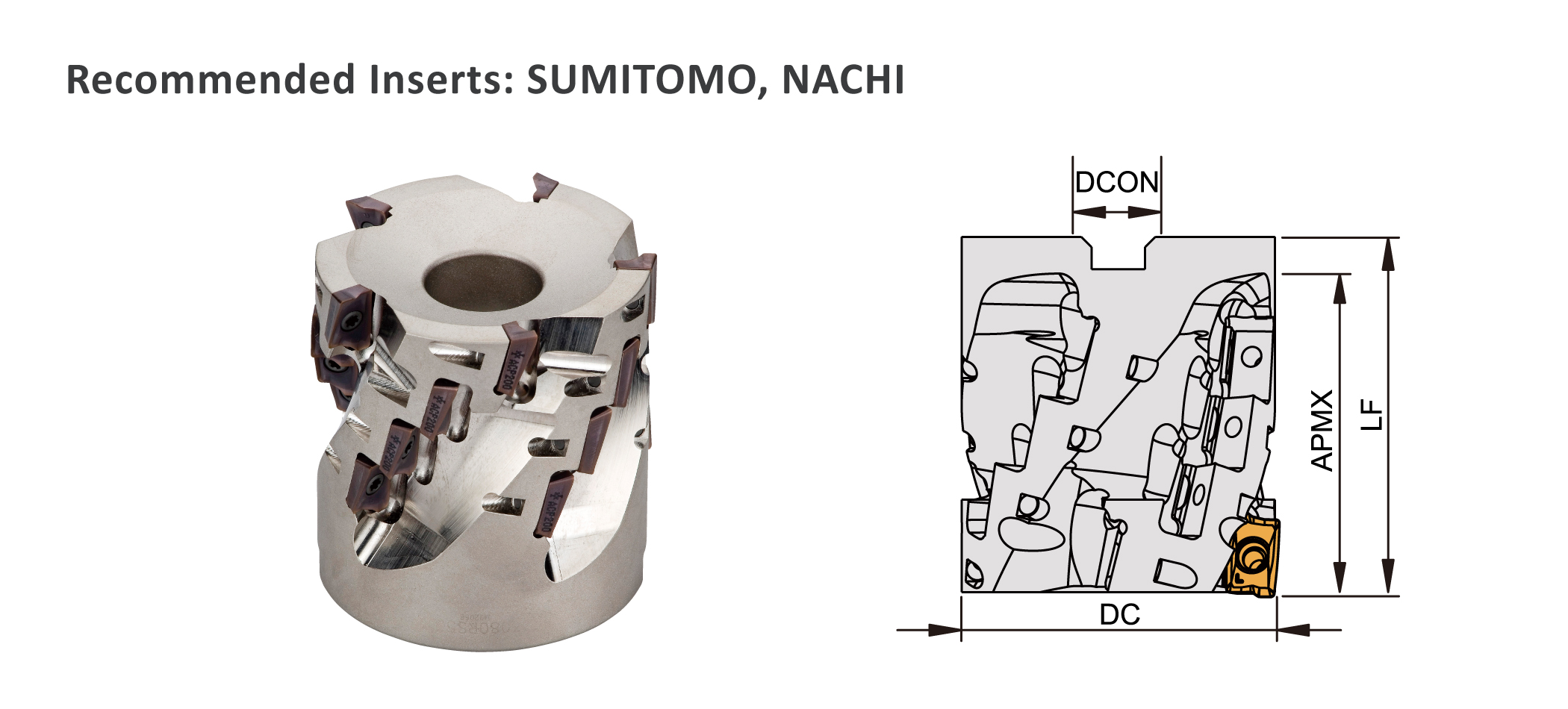

▼建議刀片品牌 : SUMITOMO/NACHI
| Order No. | Insert | Dimensions(mm) | Screw | Wrench | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Right / Left |  |
刀徑 | 孔徑 | 切削刃長 | 長度 | 有效刃數 | 刃數 |  |
 |
||||
| DC | DCON | DCON(inch) | APMX | LF | T No. | I No. | |||||||
| EM90AX17-D50S | AXMT1705 | 50 | 22 | - | 53 | 70 | 3 | 12 | CS4009P | DBIT-TP15 | |||
| EM90AX17-D63S | 63 | 27 | 1" | 53 | 70 | 4 | 16 | CS4009P | DBIT-TP15 | ||||
| EM90AX17-D63SL | 63 | - | 1” | 68 | 98 | 4 | 20 | CS4009P | DBIT-TP15 | ||||
| EM90AX17-D75SL | 75 | - | 1-1/4" | 80 | 111 | 4 | 24 | CS4009P | DBIT-TP15 | ||||
| EM90AX17-D80S | 80 | 32 | - | 53 | 85 | 5 | 20 | CS4009P | DBIT-TP15 | ||||
| EM90AX17-D100S | 100 | 40 | - | 53 | 85 | 6 | 24 | CS4009P | DBIT-TP15 | ||||
