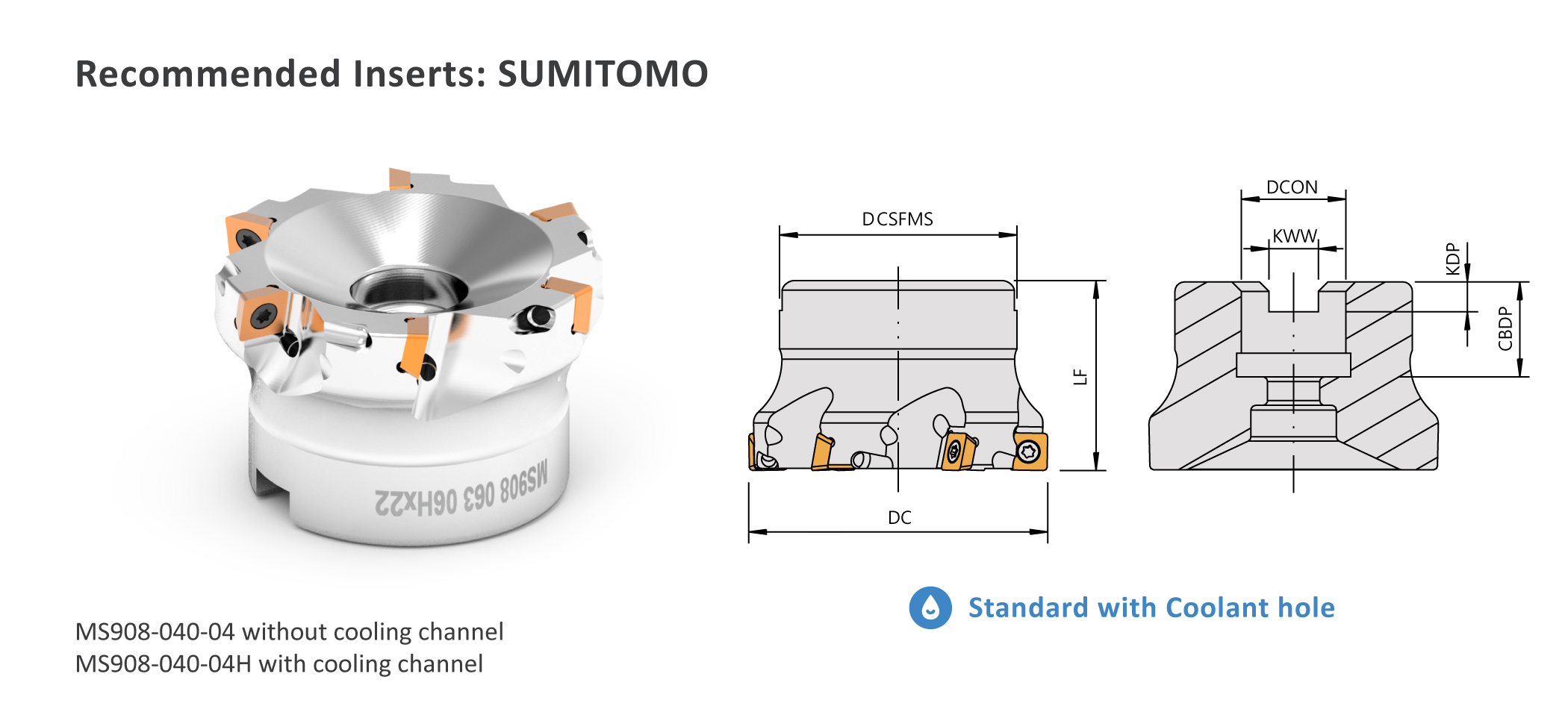

▼建議刀片品牌: SUMITOMO ▼標準規格含油孔
| Order No. | Insert | Dimensions(mm) | Screw | Wrench | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Right / Left |  |
刀徑 | 長度 | 孔徑 | 刃數 |  |
 |
||||
| DC | LF | DCON | DCON(inch) | I No. | |||||||
| MS908-040-04H | SOMT0803 SOET0803 |
40 | 40 | 16 | - | 4 | CS30063 | FT-8P | |||
| MS908-050-05H | 50 | 40 | 22 | - | 5 | ||||||
| MS908-063-06H | 63 | 40 | 22 | - | 6 | ||||||
| MS908-080-08H | 80 | 50 | 27 | 1" | 8 | ||||||
| MS908-100-10H | 100 | 50 | 32 | 1-1/4" | 10 | ||||||
MS908-040-04 without cooling channel 無油孔
MS908-040-04H with cooling channel 含油孔
