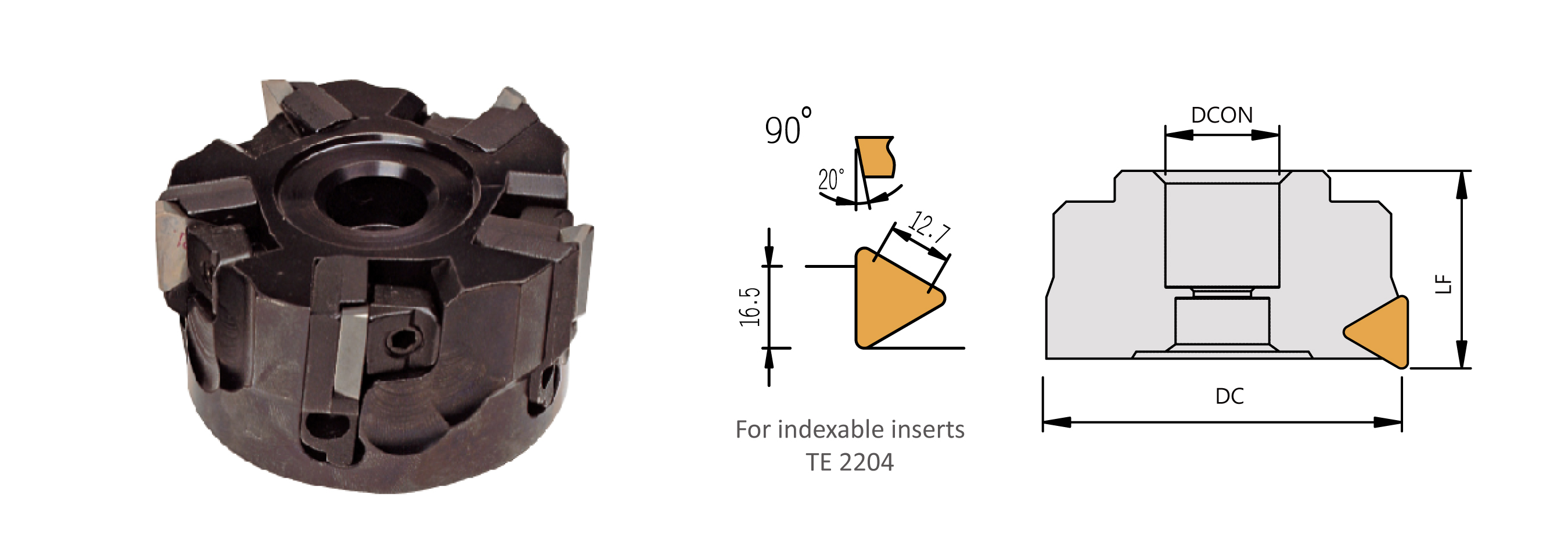

| Order No. | Insert | Dimensions(mm) | Locator | Insert Clamp | Clamp Screw | Locator Screw | Washer | Wrench | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Right / Left |  |
刀徑 | 長度 | 孔徑 | 刃數 | 刀座 | 刀片壓板 | 壓板螺絲 | 刀座螺絲 | 墊圈 | 板手 | ||||
| DC | LF | DCON | DCON(inch) | I No. |  |
 |
 |
 |
 |
 |
|||||
| MTE4080R | TE..2204 | 80 | 55 | 27 | 1" | 4 | MTEL60-16 | CP50-7 | CS70-1 | CSH0414 | CS70-3 | TW040 | |||
| MTE4100R | TE..2204 | 100 | 55 | 32 | 1-1/4" | 5 | MTEL60-16 | CP50-7 | CS70-1 | CSH0414 | CS70-3 | TW040 | |||
| MTE4125R | TE..2204 | 125 | 55 | 40 | 1-1/2" | 6 | MTEL60-16 | CP50-7 | CS70-1 | CSH0414 | CS70-3 | TW040 | |||
| MTE4160R | TE..2204 | 160 | 60 | 40 | 2" | 8 | MTEL60-16 | CP50-7 | CS70-1 | CSH0414 | CS70-3 | TW040 | |||
| MTE4200R | TE..2204 | 200 | 60 | 60 | 1-7/8" | 12 | MTEL60-16 | CP50-7 | CS70-1 | CSH0414 | CS70-3 | TW040 | |||
