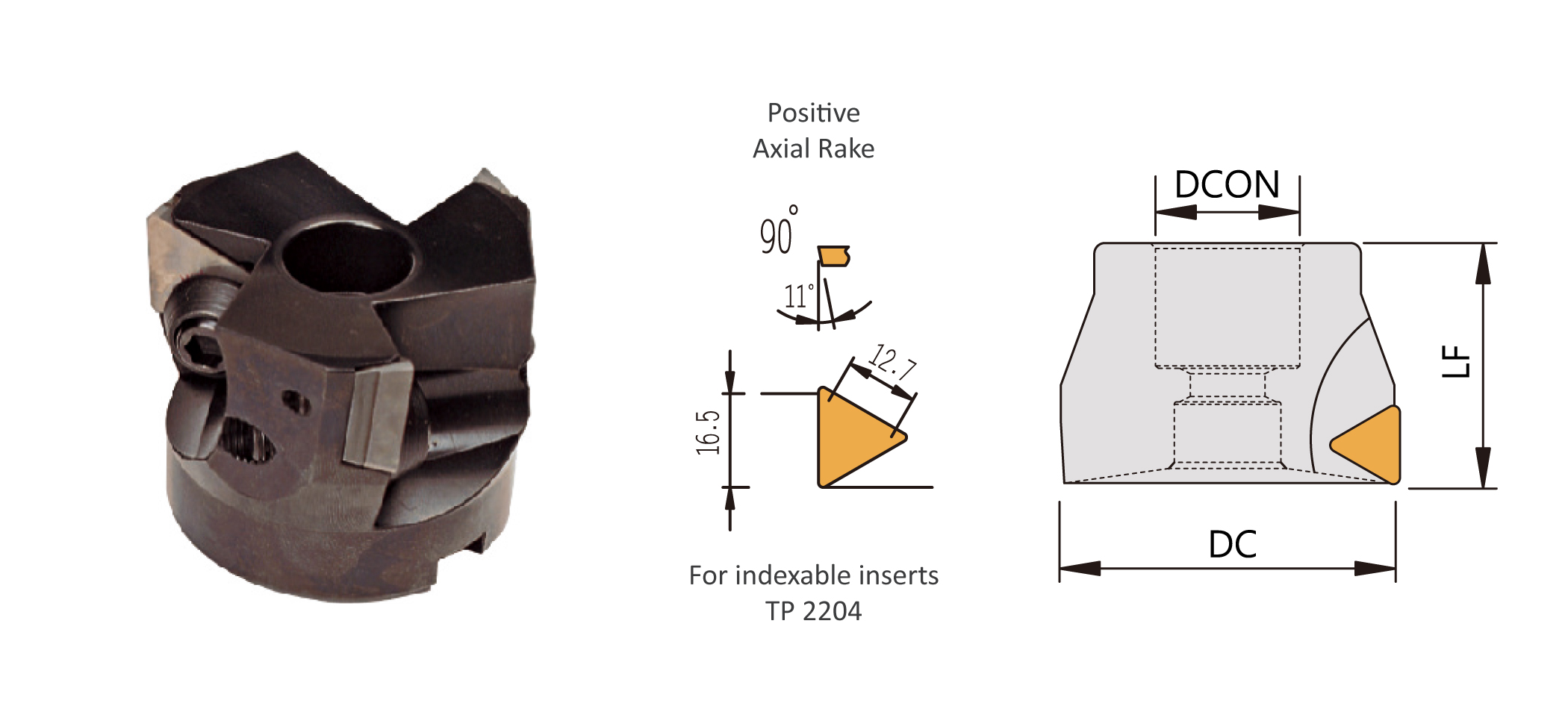

| Order No. | Insert | Dimensions(mm) | Shim | Shim Screw | Clamp | Clamp Screw | Wrench | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Right / Left |  |
刀徑 | 長度 | 孔徑 | 刃數 |  |
 |
 |
 |
 |
||||
| DC | LF | DCON | DCON(inch) | I No. | ||||||||||
| MS63T22S | TP**2204 | 63 | 50 | 22 | 1" | 3 | SMT-42 | CSA4009F | CP50-10 | CS6-8026 | LW060 | |||
| MS80T22S | TP**2204 | 80 | 50 | 27 | 1" | 4 | SMT-42 | CSA4009F | CP50-10 | CS6-8026 | LW060 | |||
| MS100T22S | TP**2204 | 100 | 50 | 32 | 1-1/4" | 5 | SMT-42 | CSA4009F | CP50-10 | CS6-8026 | LW060 | |||
| MS125T22S | TP**2204 | 125 | 61 | 40 | 1-1/2" | 6 | SMT-42 | CSA4009F | CP50-10 | CS6-8026 | LW060 | |||
