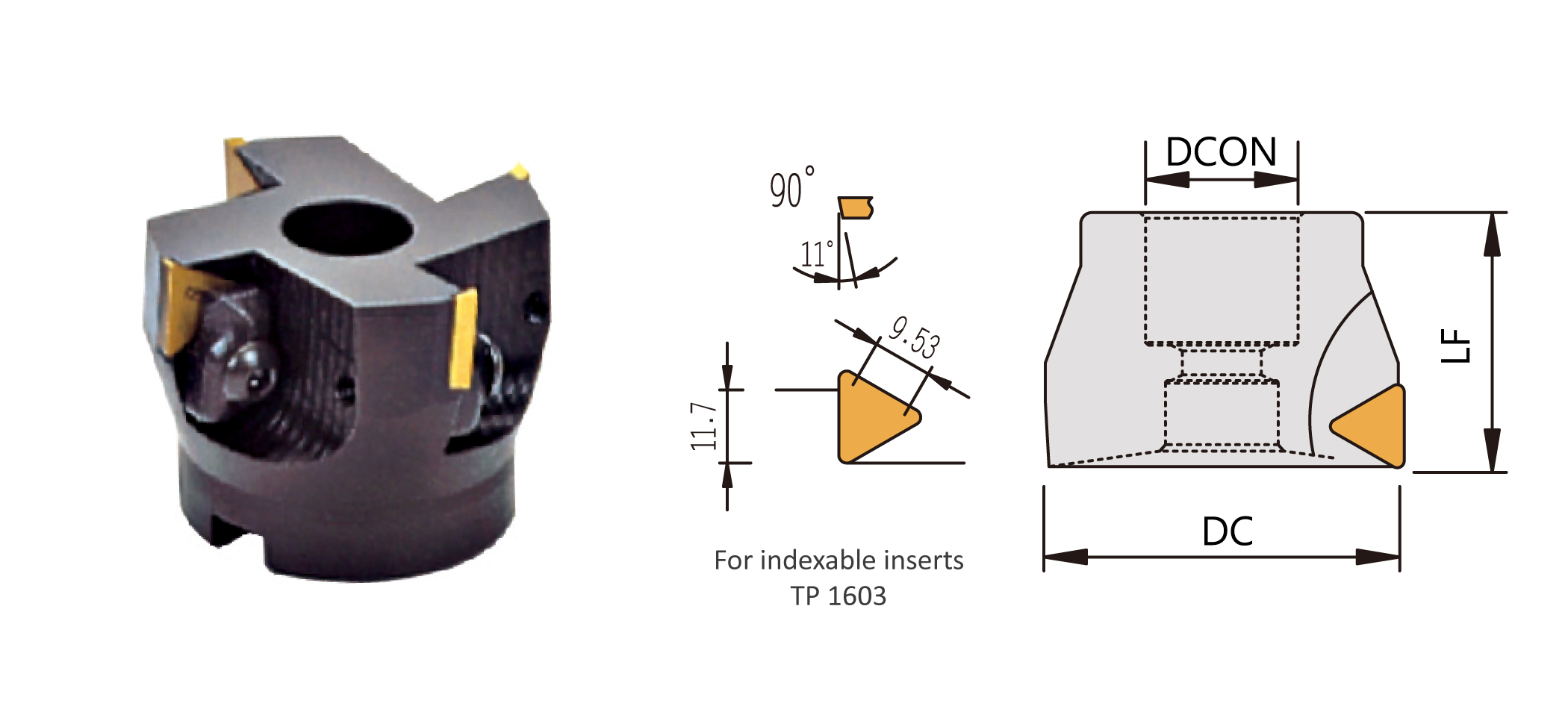

| Order No. | Insert | Dimensions(mm) | Clamp | Screw | Spring | Wrench | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Right / Left |  |
刀徑 | 長度 | 孔徑 | 刃數 |  |
 |
 |
 |
||||
| DC | LF | DCON | DCON(inch) | I No. | |||||||||
| MS50T | TP**1603 | 50 | 46 | 22 | - | 3 | CP50-3 | CSB0617T | SP030 | TL-25 | |||
| MS63T | TP**1603 | 63 | 46 | 27 | 1" | 4 | CP50-3 | CSB0617T | SP030 | TL-25 | |||
| MS75T | TP**1603 | 75 | 46.5 | 27 | 1" | 5 | CP50-3 | CSB0617T | SP030 | TL-25 | |||
| MS100T | TP**1603 | 100 | 50 | 32 | 1-1/4" | 6 | CP50-3 | CSB0617T | SP030 | TL-25 | |||
