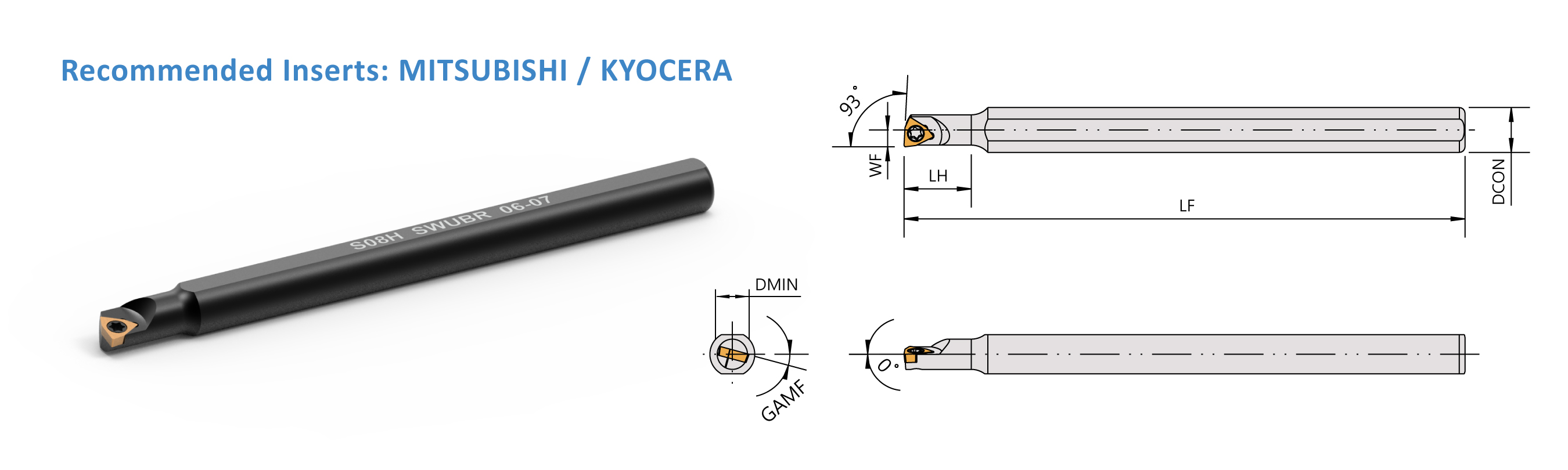

▼建議刀片品牌: MITSUBISHI/KYOCERA
| Order No. | Insert | Dimensions(mm) | Parts | Wrench | |||||
|---|---|---|---|---|---|---|---|---|---|
| Right/Left |  |
柄徑 | 工作寬度 | 長度 | 最小加工徑 | 頭長 | 徑向前角 |  |
 |
| DCON | WF | LF | DMIN | LH | GAMF | ||||
| S08H-SWUBR/L06-5.5 | WBGT0201 WBGT0601 |
8 | 3 | 100 | 5.5 | 18 | 15° | CS20038 | FT-6 |
| S08H-SWUBR/L06-07 | 8 | 3.5 | 100 | 7 | 18 | 13° | CS20038 | FT-6 | |
| S08H-SWUBR/L06-10 | 8 | 5 | 100 | 10 | - | 13° | CS20038 | FT-6 | |
| S16K-SWUBR/L06-5.5 | 16 | 3 | 125 | 5.5 | 12 | 15° | CS20038 | FT-6 | |
| S10K-SWUBR/L08-12 | WBGT0402 WBGT0802 |
10 | 6 | 125 | 12 | - | 11° | CS20045 | FT-6 |
| S12M-SWUBR/L08-14 | 12 | 7 | 150 | 14 | - | 11° | CS20045 | FT-6 | |
