| Order No. | Insert | Dimensions(mm) | Parts | Wrench | ||||
|---|---|---|---|---|---|---|---|---|
| Right/Left |  |
柄徑 | 工作寬度 | 長度 | 最小加工徑 | 徑向前角 |  |
 |

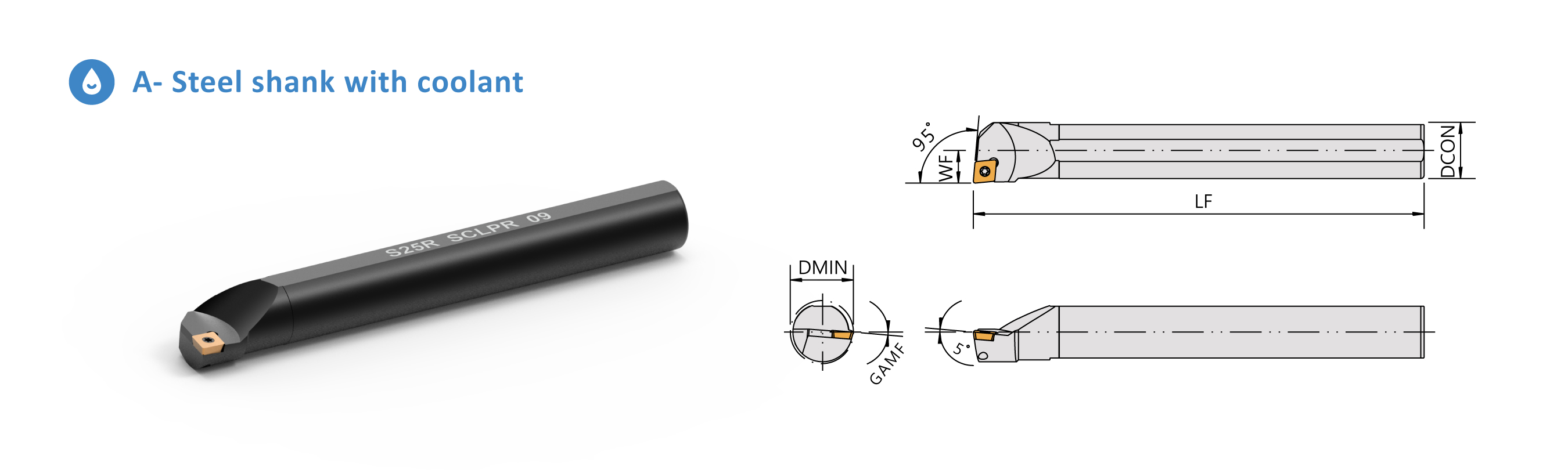

| DCON | WF | LF | DMIN | GAMF | ||||
| S08H-SCLPR/L06 | CPMT0602 | 8 | 6 | 100 | 12 | 7° | CS25050 | FT-7 |
| S10K-SCLPR/L06 | CPMT0602 | 10 | 7 | 125 | 14 | 7° | CS25061S | FT-7 |
| S12M-SCLPR/L06 | CPMT0602 | 12 | 9 | 150 | 16 | 6° | CS25061S | FT-7 |
| S10K-SCLPR/L08 | CPMT0802 | 10 | 7 | 125 | 14 | 7° | CS30070 | FT-10 |
| S10K-SCLPR/L08-12 | CPMT0802 | 10 | 6 | 125 | 12 | 7° | CS30070 | FT-10 |
| S12M-SCLPR/L08 | CPMT0802 | 12 | 8 | 150 | 16 | 6° | CS30070 | FT-10 |
| S12M-SCLPR/L08-14 | CPMT0802 | 12 | 7 | 150 | 14 | 6° | CS30070 | FT-10 |
| S16Q-SCLPR/L08 | CPMT0802 | 16 | 9 | 180 | 18 | 7° | CS30070 | FT-10 |
| S12M-SCLPR/L09 | CPMT0903 | 12 | 9 | 150 | 16 | 12° | CS40090 | FT-15 |
| S16Q-SCLPR/L09 | CPMT0903 | 16 | 11 | 180 | 20 | 7° | CS40090 | FT-15 |
| S16Q-SCLPR/L09-18 | CPMT0903 | 16 | 9 | 180 | 18 | 7° | CS40090 | FT-15 |
| S20R-SCLPR/L09 | CPMT0903 | 20 | 13 | 200 | 25 | 5° | CS40090 | FT-15 |
| S20S-SCLPR/L09 | CPMT0903 | 20 | 13 | 250 | 25 | 5° | CS40090 | FT-15 |
| S20R-SCLPR/L09-22 | CPMT0903 | 20 | 11 | 200 | 22 | 5° | CS40090 | FT-15 |
| S25R-SCLPR/L09 | CPMT0903 | 25 | 17 | 200 | 32 | 5° | CS40090 | FT-15 |
| S25R-SCLPR/L09-28 | CPMT0903 | 25 | 14.5 | 200 | 28 | 5° | CS40090 | FT-15 |
| S32S-SCLPR/L09 | CPMT0903 | 32 | 22 | 250 | 40 | 5° | CS40090 | FT-15 |
