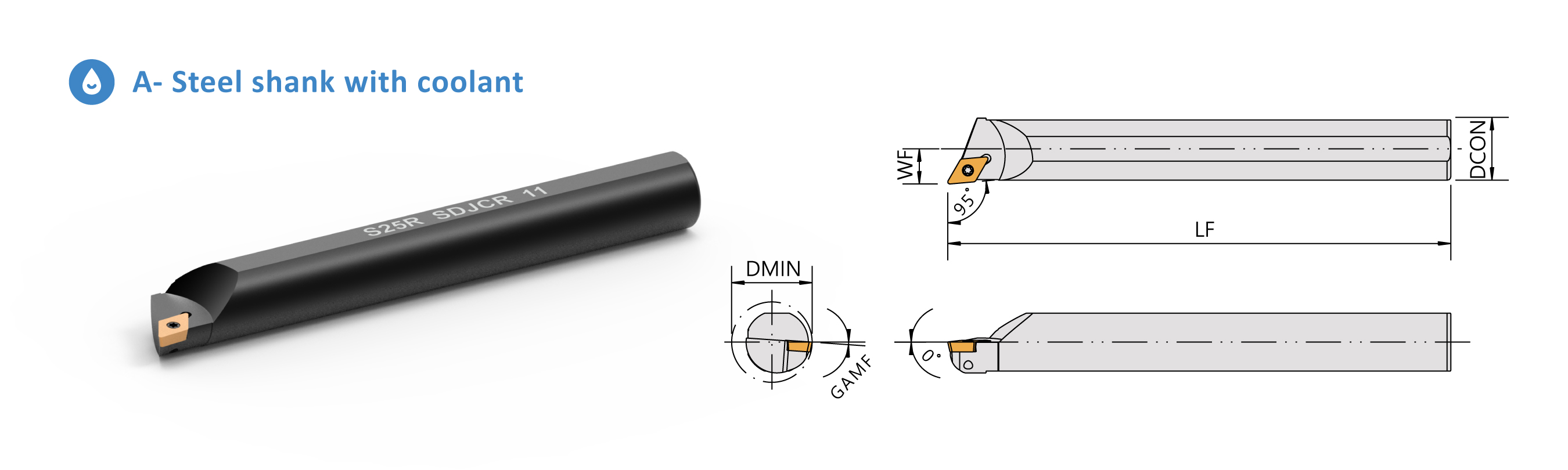

| Order No. | Insert | Dimensions(mm) | Parts | Wrench | ||||
|---|---|---|---|---|---|---|---|---|
| Right/Left |  |
柄徑 | 工作寬度 | 長度 | 最小加工徑 | 徑向前角 |  |
 |
| DCON | WF | LF | DMIN | GAMF | ||||
| S08K-SDJCR/L07 | DCMT0702 | 8 | 5 | 125 | 11 | 10° | CS25050 | FT-7 |
| S10M-SDJCR/L07 | DCMT0702 | 10 | 6 | 150 | 13 | 10° | CS25061S | FT-7 |
| S12M-SDJCR/L07 | DCMT0702 | 12 | 7 | 150 | 19 | 10° | CS25061S | FT-7 |
| S16Q-SDJCR/L07 | DCMT0702 | 16 | 9.5 | 180 | 23 | 8° | CS25061S | FT-7 |
| S16Q-SDJCR/L11 | DCMT11T3 | 16 | 9.5 | 180 | 23 | 8° | CS35095 | FT-15 |
| S20R-SDJCR/L11 | DCMT11T3 | 20 | 11.5 | 200 | 27 | 6° | CS35095 | FT-15 |
| S25R-SDJCR/L11 | DCMT11T3 | 25 | 14 | 200 | 32 | 4° | CS35095 | FT-15 |
| S32S-SDJCR/L11 | DCMT11T3 | 32 | 17.5 | 250 | 40 | 2° | CS35095 | FT-15 |
