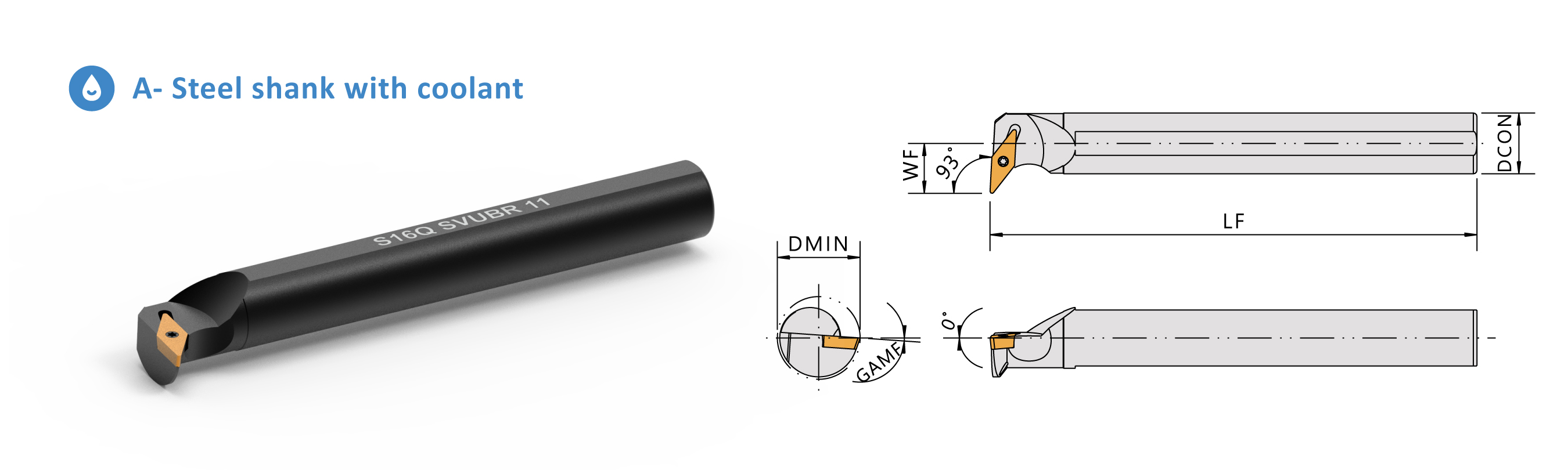

| Order No. | Insert | Dimensions(mm) | Parts | Wrench | ||||
|---|---|---|---|---|---|---|---|---|
| Right/Left |  |
柄徑 | 工作寬度 | 長度 | 最小加工徑 | 徑向前角 |  |
 |
| DCON | WF | LF | DMIN | GAMF | ||||
| S16Q-SVUBR/L11 | VCMT1103 | 16 | 13 | 180 | 22 | 7° | CS25061S | FT-7 |
| S20R-SVUBR/L11 | VCMT1103 | 20 | 15 | 200 | 27 | 6° | CS25061S | FT-7 |
| S25R-SVUBR/L11 | VCMT1103 | 25 | 20.5 | 200 | 33 | 4° | CS25061S | FT-7 |
| S20R-SVUBR/L16 | VCMT1604 | 20 | 19 | 200 | 31 | 8° | CS35090 | FT-15 |
| S25R-SVUBR/L16 | VCMT1604 | 25 | 20.5 | 200 | 34 | 4° | CS35090 | FT-15 |
| S32S-SVUBR/L16 | VCMT1604 | 32 | 22.5 | 250 | 42 | 8° | CS35090 | FT-15 |
| S32U-SVUBR/L16 | VCMT1604 | 32 | 22.5 | 350 | 42 | 8° | CS35090 | FT-15 |
| S40V-SVUBR/L16 | VCMT1604 | 40 | 27 | 400 | 51 | 6° | CS35090 | FT-15 |
| S50V-SVUBR/L16 | VCMT1604 | 50 | 32 | 400 | 58 | 6° | CS35090 | FT-15 |
