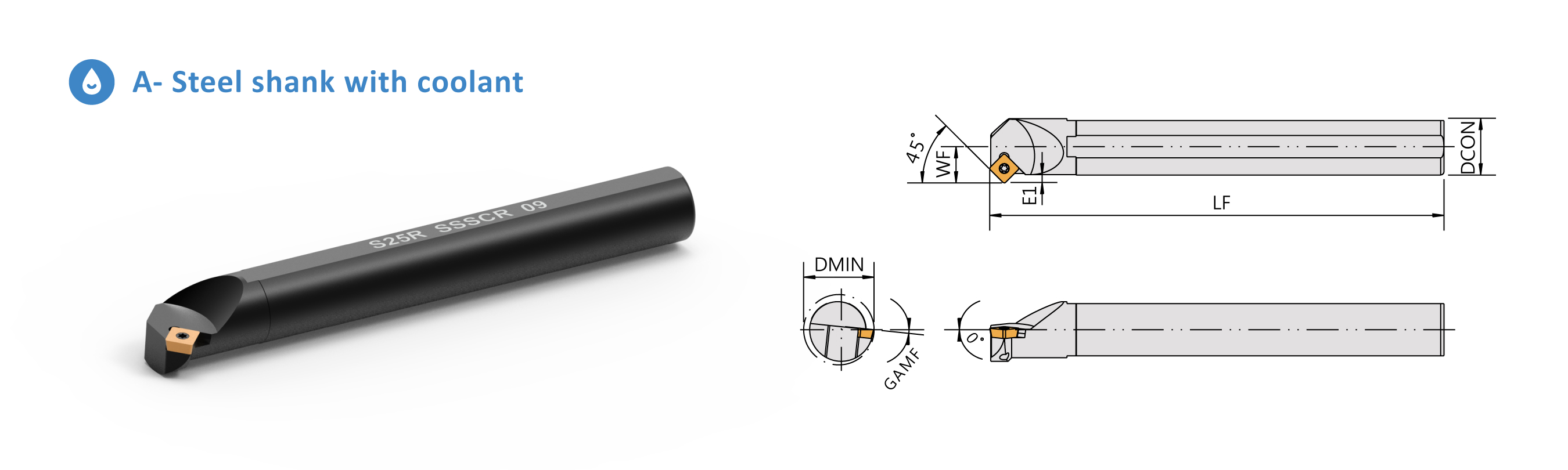

| Order No. | Insert | Dimensions(mm) | Parts | Wrench | |||||
|---|---|---|---|---|---|---|---|---|---|
| Right/Left |  |
柄徑 | 工作寬度 | 切深 | 長度 | 最小加工徑 | 徑向前角 |  |
 |
| DCON | WF | E1 | LF | DMIN | GAMF | ||||
| S12M-SSSCR/L09 | SCMT09T3 | 12 | 8.5 | 2.5 | 150 | 16 | 12° | CS40090 | FT-15 |
| S16Q-SSSCR/L09 | SCMT09T3 | 16 | 11.5 | 3.5 | 180 | 20 | 10° | CS40090 | FT-15 |
| S20R-SSSCR/L09 | SCMT09T3 | 20 | 13.5 | 3.5 | 200 | 26 | 8° | CS40090 | FT-15 |
| S25R-SSSCR/L09 | SCMT09T3 | 25 | 16 | 3.5 | 200 | 31 | 6° | CS40090 | FT-15 |
