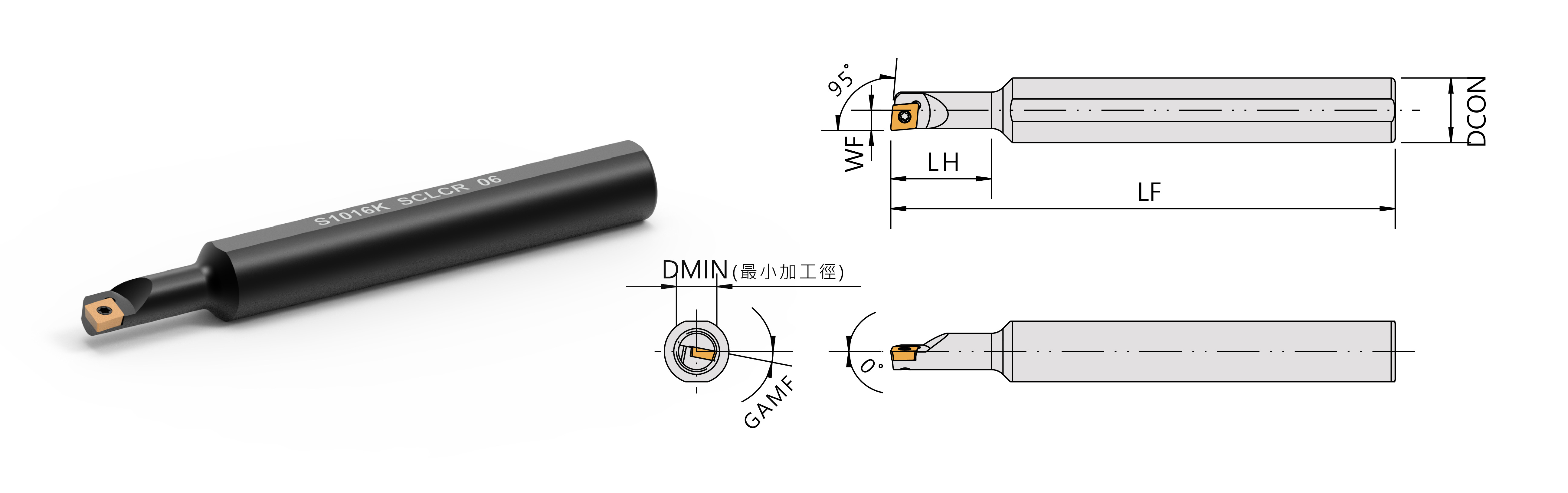

| Micro Boring Bars 小徑刀 | |||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Order No. | Insert | Dimensions(mm) | Parts | Wrench | |||||||||
| Right/Left |  |
柄徑 | 工作寬度 | 長度 | 最小加工徑 | 頭長 | 徑向前角 |  |
 |
||||
| DCON | WF | LF | DMIN | LH | GAMF | ||||||||
| S12K-SCLCR04-06 | CCGT04T0 CCGT04X1 |
12 | 3 | 125 | 6 | 15 | 13° | CS20038 | FT-6 | ||||
| S12K-SCLCR04-07 | 12 | 3.5 | 125 | 7 | 15 | 13° | CS20038 | FT-6 | |||||
| S16K-SCLCR06-08 | CCMT0602 | 16 | 4 | 125 | 8 | 20 | 15° | CS25050 | FT-6 | ||||
| S16K-SCLCR06-09 | 16 | 4.5 | 125 | 9 | 25 | 12° | CS25050 | FT-6 | |||||
| S16K-SCLCR06-10 | 16 | 5 | 125 | 10 | 25 | 11° | CS25050 | FT-6 | |||||
