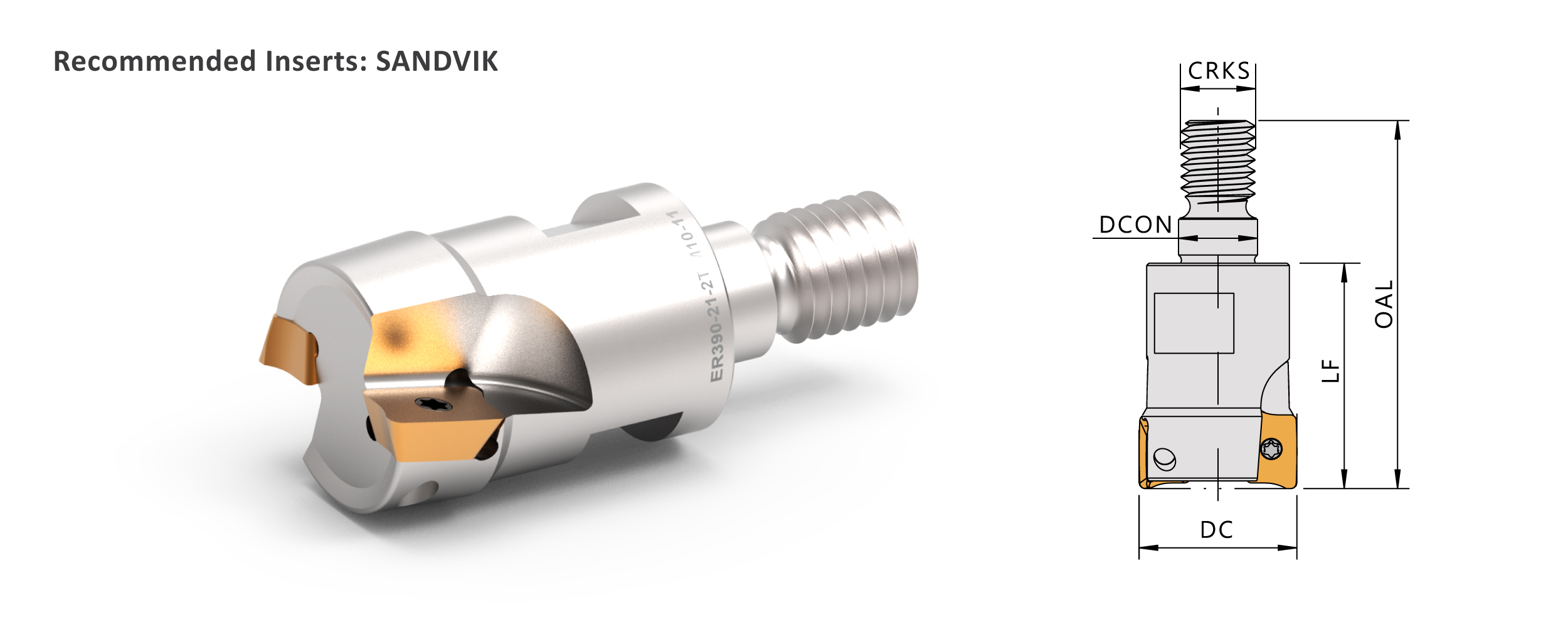

▼建議刀片品牌: SANDVIK
| Order No. | Insert | Dimensions(mm) | Screw | Wrench | ||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Right/Left |  |
刀徑 | 柄徑 | 全總長 | 長度 | 螺紋 | 刃數 |  |
 |
|
| DCX | DCON | OAL | LF | CRKS | I No. | |||||
| ER390-16-2T-M08-11 | R390-11T3 | 16 | 8.5 | 43 | 25 | M8 | 2 | CS25055 | FT-8P | |
| ER390-17-2T-M08-11 | 17 | 8.5 | 42 | 25 | M8 | 2 | ||||
| ER390-21-2T-M10-11 | 21 | 10.5 | 49 | 30 | M10 | 2 | CS25065 | |||
| ER390-26-2T-M12-11 | 26 | 12.5 | 57 | 35 | M12 | 2 | ||||
