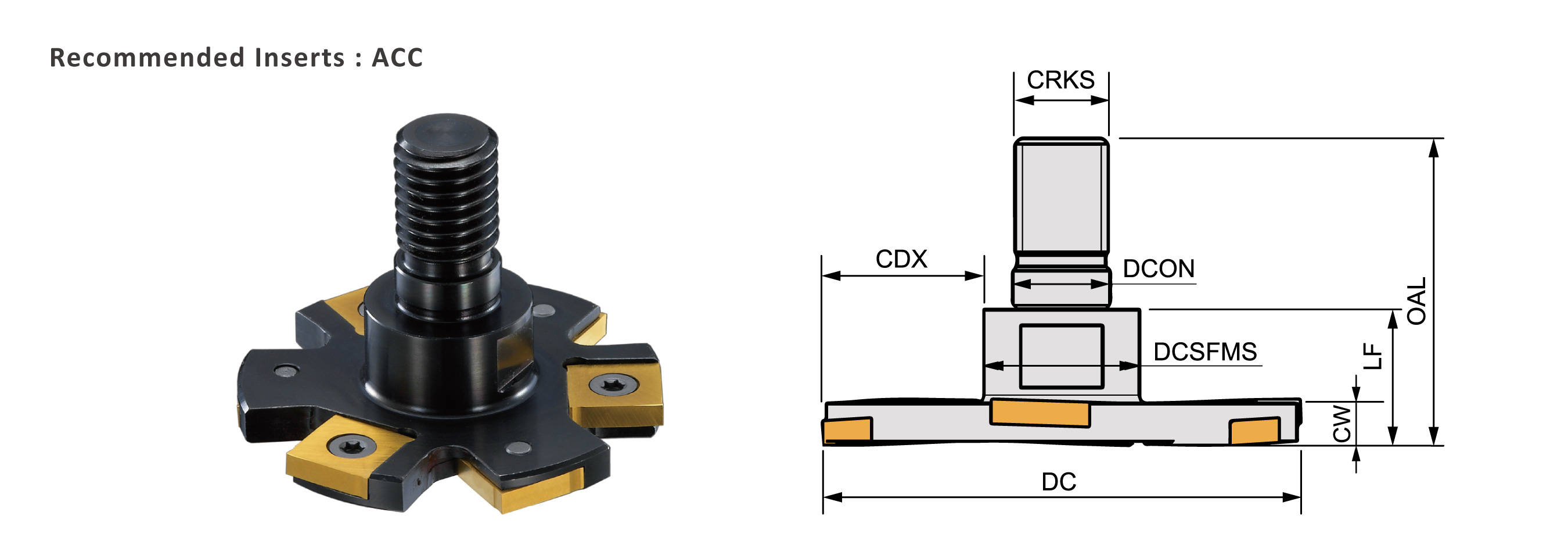

▼建議刀片品牌 : ACC ▼最小尺寸 : 40mm ▼規格可接受訂製
| Order No. | Insert | Dimensions(mm) | Clamping Screw | Wrench | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Right / Left | 刀徑 | 切寬 | 最大切深 | 夾持接觸面直徑 | 孔徑 | 螺紋 | 長度 | 總長 | 刃數 |  |
 |
|
| DC | CW | CDX | DCSFMS | DCON | CRKS | LF | OAL | I No. | ||||
| MICSN04004 | SNHX1102 | 40 | 4 | 12 | 12 | 8.5 | M8 | 15.5 | 17 | 4 | CSA30035S | FT-7 |
| MICSN05004 | SNHX1102 | 50 | 4 | 16 | 16 | 10.5 | M10 | 15.5 | 19 | 6 | CSA30035S | FT-7 |
| MICSN06304 | SNHX1102 | 63 | 4 | 20 | 20 | 12.5 | M12 | 15.5 | 22 | 8 | CSA30035S | FT-7 |
| MICSN08004 | SNHX1102 | 80 | 4 | 26 | 25 | 17 | M16 | 15.5 | 23 | 10 | CSA30035S | FT-7 |
| MICSN04005 | SNHX1103 | 40 | 5 | 12 | 12 | 8.5 | M8 | 16.5 | 17 | 4 | CSA30042 | FT-7 |
| MICSN05005 | SNHX1103 | 50 | 5 | 16 | 16 | 10.5 | M10 | 16.5 | 19 | 6 | CSA30042 | FT-7 |
| MICSN06305 | SNHX1103 | 63 | 5 | 20 | 20 | 12.5 | M12 | 16.5 | 22 | 8 | CSA30042 | FT-7 |
| MICSN08005 | SNHX1103 | 80 | 5 | 26 | 25 | 17 | M16 | 16.5 | 23 | 10 | CSA30042 | FT-7 |
| MICSN05006 | SNHX1203 | 50 | 6 | 16 | 16 | 10.5 | M10 | 17.5 | 19 | 4 | CSA40051 | FT-15 |
| MICSN06306 | SNHX1203 | 63 | 6 | 20 | 20 | 12.5 | M12 | 17.5 | 22 | 6 | CSA40051 | FT-15 |
| MICSN08006 | SNHX1203 | 80 | 6 | 26 | 25 | 17 | M16 | 17.5 | 23 | 8 | CSA40051 | FT-15 |
| MICSN05007 | SNHX1204 | 50 | 7 | 16 | 16 | 10.5 | M10 | 18.5 | 19 | 4 | CSA40059 | FT-15 |
| MICSN06307 | SNHX1204 | 63 | 7 | 20 | 20 | 12.5 | M12 | 18.5 | 22 | 6 | CSA40059 | FT-15 |
| MICSN08007 | SNHX1204 | 80 | 7 | 26 | 25 | 17 | M16 | 18.5 | 23 | 8 | CSA40059 | FT-15 |
| MICSN05010 | SNHX1205 | 50 | 10 | 16 | 16 | 10.5 | M10 | 19.5 | 19 | 4 | CSA40079 | FT-15 |
| MICSN06310 | SNHX1205 | 63 | 10 | 20 | 20 | 12.5 | M12 | 19.5 | 22 | 6 | CSA40079 | FT-15 |
| MICSN08010 | SNHX1205 | 80 | 10 | 26 | 25 | 17 | M16 | 19.5 | 23 | 8 | CSA40079 | FT-15 |
