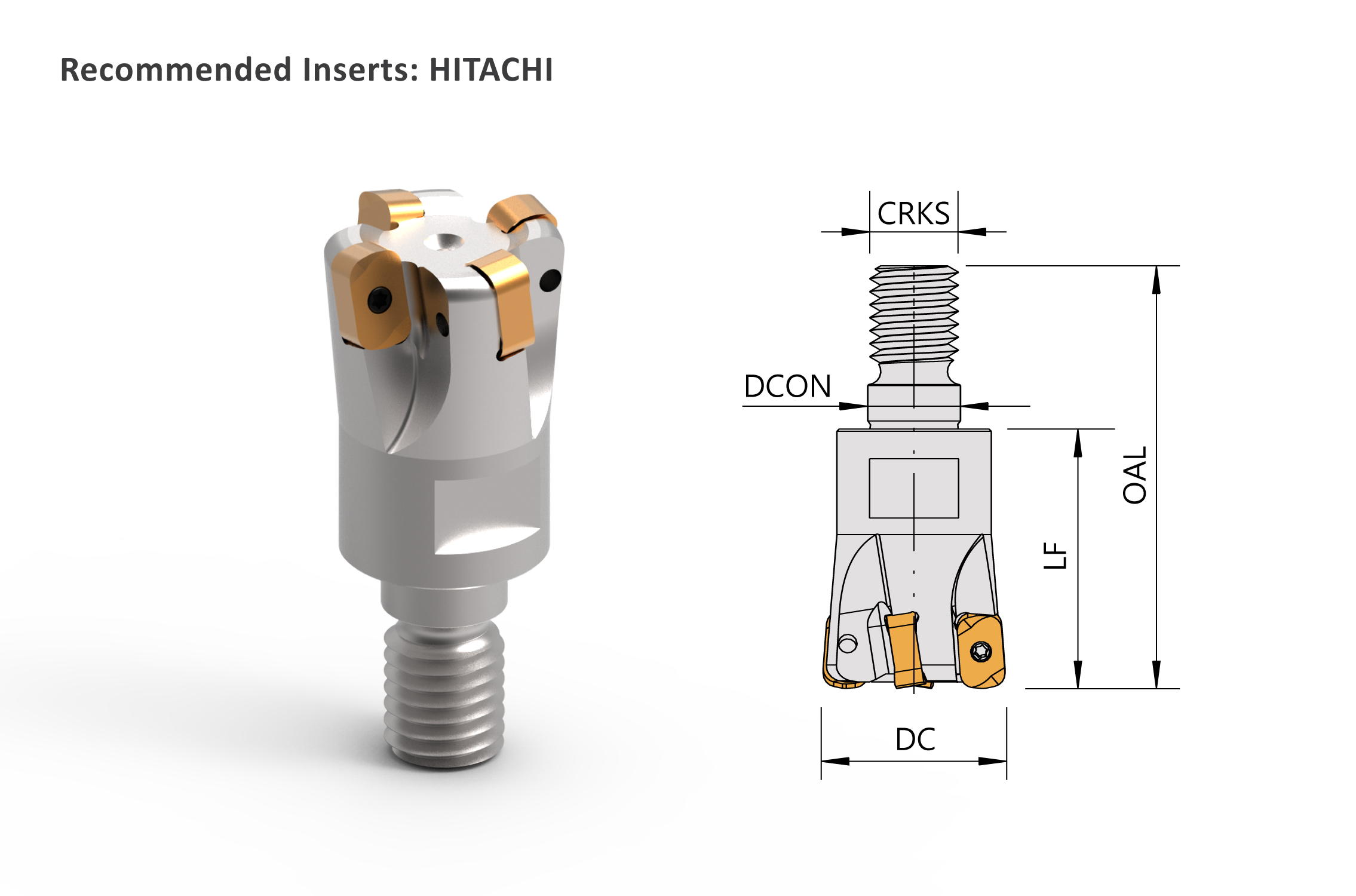

▼建議刀片品牌: HITACHI
| Order No. | Insert | Dimensions(mm) | Screw | Wrench | ||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Right / Left |  |
刀徑 | 柄徑 | 全總長 | 長度 | 螺紋 | 刃數 |  |
 |
|
| DC | DCON | OAL | LF | CRKS | I No. | |||||
| HTD4N16M08-2T | ENMU0603ER-C ENMU0603ER-B |
16 | 8.5 | 43 | 25 | M08 | 2 | CS25065/ CS25062S |
FT-8 | |
| HTD4N17M08-2T | 17 | 8.5 | 43 | 25 | M08 | 2 | FT-8 | |||
| HTD4N20M10-3T | 20 | 10.5 | 49 | 30 | M10 | 3 | FT-8 | |||
| HTD4N21M10-3T | 21 | 10.5 | 49 | 30 | M10 | 3 | FT-8 | |||
| HTD4N25M12-4T | 25 | 12.5 | 57 | 35 | M12 | 4 | FT-8 | |||
| HTD4N25M12-4T | 25 | 12.5 | 57 | 35 | M12 | 4 | FT-8 | |||
| HTD4N26M12-4T | 26 | 12.5 | 57 | 35 | M16 | 4 | FT-8 | |||
| HTD4N32M16-5T | 32 | 17 | 62 | 40 | M16 | 5 | FT-8 | |||
| HTD4N35M16-5T | 35 | 17 | 62 | 40 | M16 | 5 | FT-8 | |||
