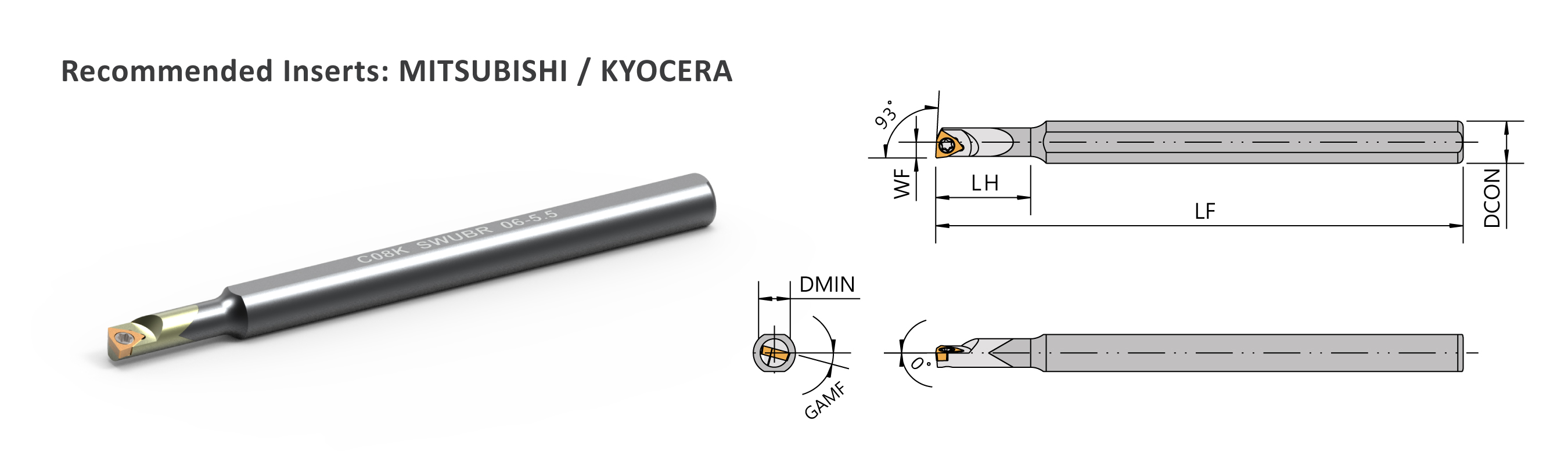

▼建議刀片品牌: MITSUBISHI/KYOCERA
| Order No. | Insert | Dimensions(mm) | Parts | Wrench | |||||
|---|---|---|---|---|---|---|---|---|---|
| Right/Left |  |
柄徑 | 工作寬度 | 長度 | 最小加工徑 | 頭長 | 徑向前角 |  |
 |
| DCON | WF | LF | DMIN | LH | GAMF | ||||
| C05H-SWUBR 06-5.5 | WBGT0201 WBGT0601 |
5 | 3.0 | 100 | 5.5 | - | 15° | CS20038 | FT-6 |
| C06H-SWUBR 06-07 | 6 | 3.5 | 100 | 7 | - | 13° | CS20038 | FT-6 | |
| C07H-SWUBR 06-08 | 7 | 4.0 | 100 | 8 | - | 13° | CS20038 | FT-6 | |
| C08K-SWUBR 06-5.5 | 8 | 3.0 | 125 | 5.5 | 30 | 13° | CS20038 | FT-6 | |
