▼Recommended Inserts: MITSUBISHI

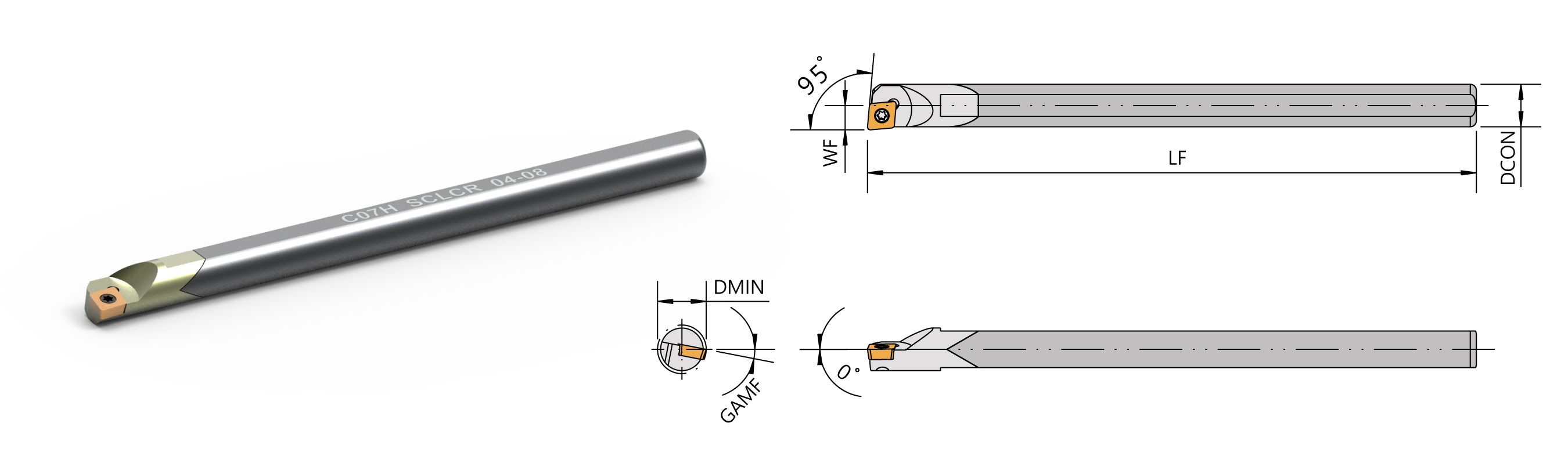

| Micro Boring Bars 小徑刀 | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Order No. | Insert | Dimensions(mm) | Parts | Wrench | |||||||
| Right/Left |  |
柄徑 | 工作寬度 | 長度 | 最小加工徑 | 徑向前角 |  |
 |
|||
| DCON | WF | LF | DMIN | GAMF | |||||||
| C04G-SCLCR03-05 | CCGT03S1 | 4 | 2.5 | 90 | 5 | 15° | CS16031 | FT-6 | |||
| C05H-SCLCR03-06 | 5 | 3.0 | 100 | 6 | 13° | CS16031 | FT-6 | ||||
| C05H-SCLCR04-06 | CCGT04T0 CCGT04X1 |
5 | 3.0 | 100 | 6 | 13° | CS20038 | FT-6 | |||
| C06H-SCLCR04-07 | 6 | 3.5 | 100 | 7 | 13° | CS20038 | FT-6 | ||||
| C07H-SCLCR04-08 | 7 | 4.0 | 100 | 8 | 11° | CS20038 | FT-6 | ||||
