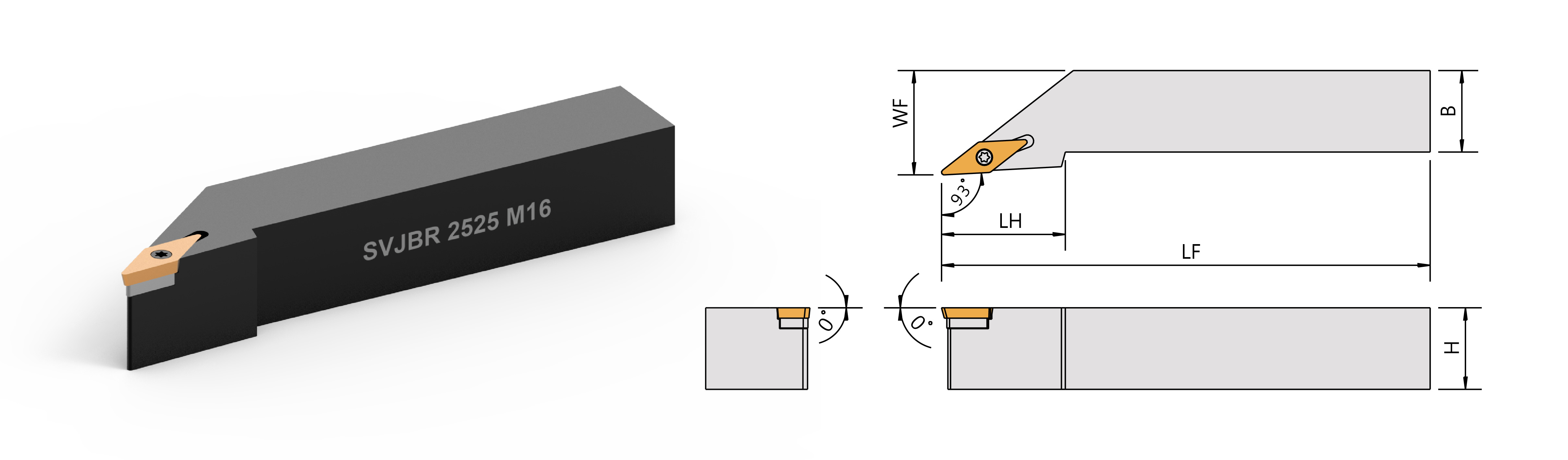

| Order No. | Insert | Dimensions(mm) | Parts | Wrench | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Right/Left |  |
柄高 | 柄寬 | 長度 | 頭長 | 工作寬度 |  |
 |
 |
 |
 |
| H | B | LF | LH | WF | |||||||
| SVJBR/L-2020K11 | VBMT1103 | 20 | 20 | 125 | 22 | 25 | - | - | CS25061S | FT-7 | - |
| SVJBR/L-2020K16 | VBMT1604 | 20 | 20 | 125 | 33 | 25 | SMV-321 | SN535 | CS35119S | FT-15 | LW035 |
| SVJBR/L-2525M16 | 25 | 25 | 150 | 38 | 32 | ||||||
| SVJBR/L-3232P16 | 32 | 32 | 170 | 38 | 40 | ||||||
| SVJCR/L-2020K11 | VCMT1103 | 20 | 20 | 125 | 33 | 25 | - | - | CS25061S | FT-7 | - |
| SVJCR/L-2525M11 | 25 | 25 | 150 | 38 | 32 | ||||||
| SVJCR/L-2020K16 | VCMT1604 | 20 | 20 | 125 | 33 | 25 | SMV-321 | SN535 | CS35119S | FT-15 | LW035 |
| SVJCR/L-2525M16 | 25 | 25 | 150 | 38 | 32 | ||||||
