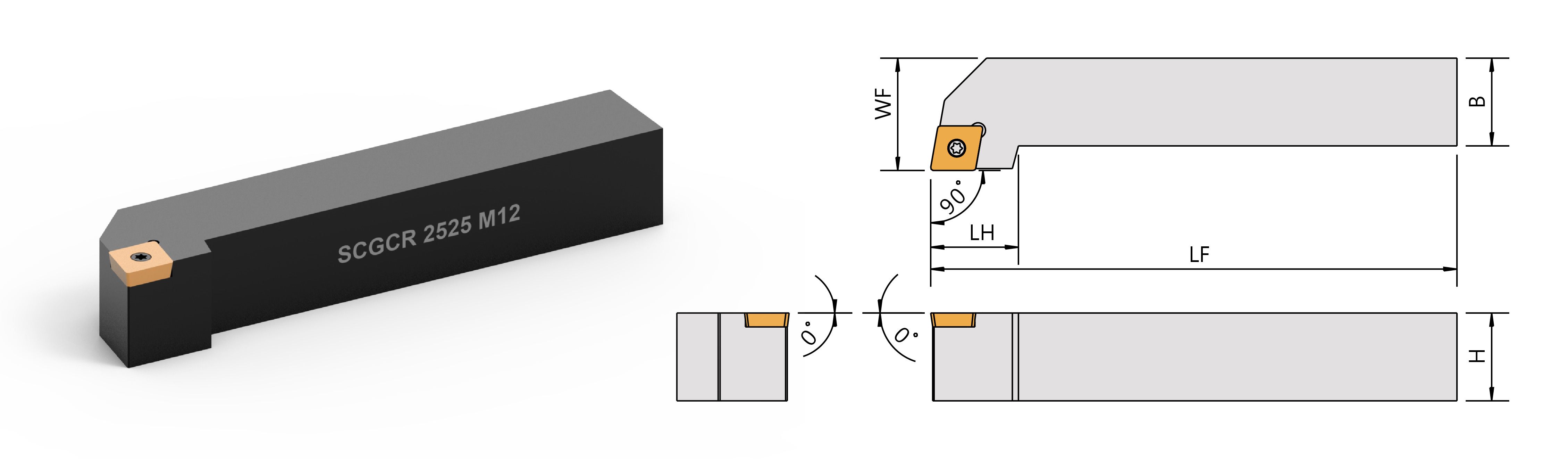

Order No. | Insert | Dimensions(mm) | Parts | Wrench | ||||
---|---|---|---|---|---|---|---|---|
Right/Left | 柄高 | 柄寬 | 長度 | 頭長 | 工作寬度 | |||
H | B | LF | LH | WF | ||||
SCGCR/L-0808H06 | CCMT0602 | 8 | 8 | 100 | 12 | 10 | CS25061S | FT-7 |
SCGCR/L-1010H06 | CCMT0602 | 10 | 10 | 100 | 12 | 12 | CS25061S | FT-7 |
SCGCR/L-1212H09 | CCMT09T3 | 12 | 12 | 100 | 17 | 16 | CS35090 | FT-15 |
SCGCR/L-1616H09 | CCMT09T3 | 16 | 16 | 100 | 18 | 20 | CS35090 | FT-15 |
SCGCR/L-2020K12 | CCMT1204 | 20 | 20 | 125 | 22 | 25 | CS40115 | FT-15 |
SCGCR/L-2525M12 | CCMT1204 | 25 | 25 | 150 | 25 | 32 | CS40115 | FT-15 |
