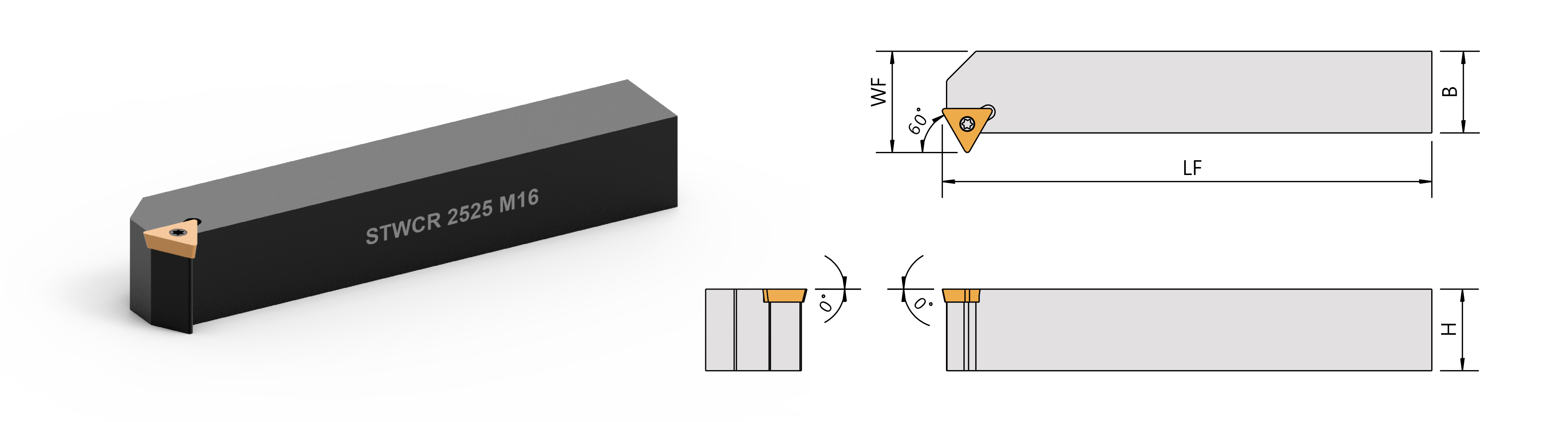

| Order No. | Insert | Dimensions(mm) | Parts | Wrench | |||
|---|---|---|---|---|---|---|---|
| Right/Left |  |
柄高 | 柄寬 | 長度 | 工作寬度 |  |
 |
| H | B | LF | WF | ||||
| STWCR/L-1212H11 | TCMT1102 | 12 | 12 | 100 | 15.3 | CS25061S | FT-7 |
| STWCR/L-1616H11 | TCMT1102 | 16 | 16 | 100 | 19.3 | CS25061S | FT-7 |
| STWCR/L-2020K11 | TCMT1102 | 20 | 20 | 125 | 23.3 | CS25061S | FT-7 |
| STWCR/L-2525M11 | TCMT1102 | 25 | 25 | 150 | 28.3 | CS25061S | FT-7 |
| STWCR/L-1616H16 | TCMT16T3 | 16 | 16 | 100 | 21 | CS40090 | FT-15 |
| STWCR/L-2020K16 | TCMT16T3 | 20 | 20 | 125 | 26 | CS40090 | FT-15 |
| STWCR/L-2525M16 | TCMT16T3 | 25 | 25 | 150 | 31 | CS40090 | FT-15 |
| STWCR/L-3232P16 | TCMT16T3 | 32 | 32 | 170 | 38 | CS40090 | FT-15 |
