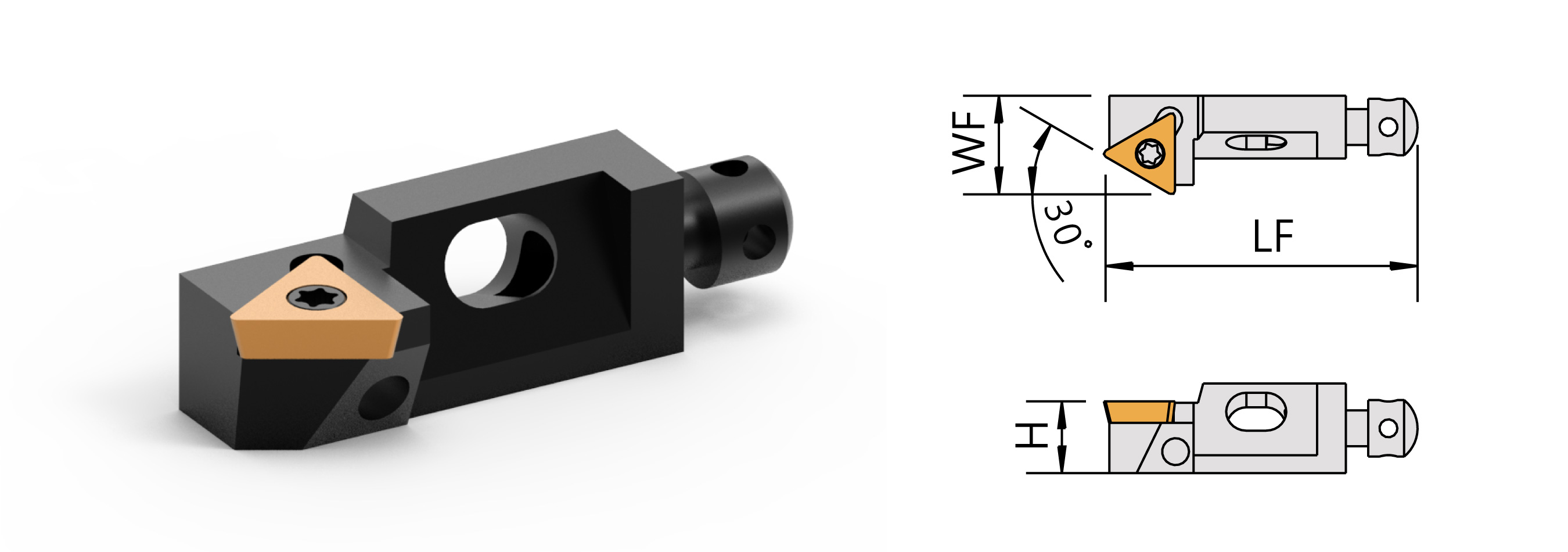

| Order No. | Insert | Dimensions(mm) | Parts | Wrench | |||
|---|---|---|---|---|---|---|---|
| Right / Left |  |
工作寬度 | 長度 | 柄高 |  |
 |
|
| WF | LF | H | |||||
| STTCR08CA-09 | TCMT0902 | 10 | 32 | 08 | CS22050 | CSC3009 | FT-7 |
| STTCR08CA-11 | TCMT1102 | 10 | 32 | 08 | CS25065/ CS25062S |
CSC3009 | FT-8 |
| STTCR10CA-11 | TCMT1102 | 14 | 50 | 10 | CS25065/ CS25062S |
CSC4014 | FT-8 |
| STTCR12CA-16 | TCMT16T3 | 20 | 55 | 12 | CS35090 | CSC4014 | FT-15 |
