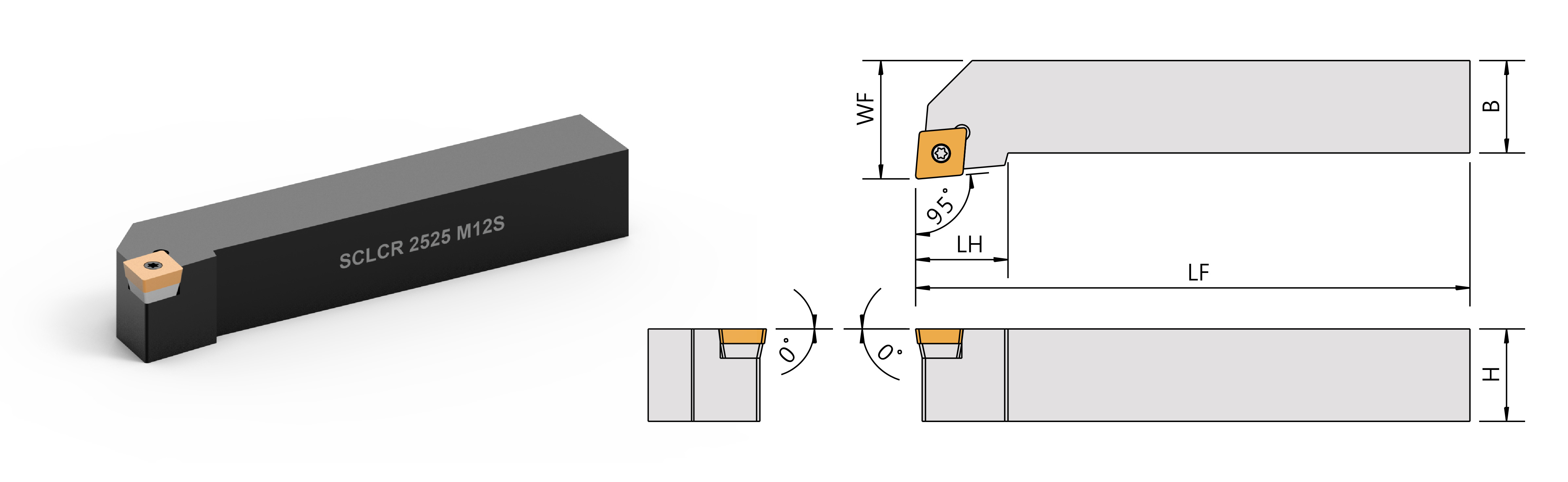

Order No. | Insert | Dimensions(mm) | Parts | Wrench | |||||||
---|---|---|---|---|---|---|---|---|---|---|---|
Right/Left | 柄高 | 柄寬 | 長度 | 頭長 | 工作寬度 | ||||||
H | B | LF | LH | WF | |||||||
SCLCR/L-2020K09S | CCMT09T3 | 20 | 20 | 125 | 22 | 25 | SMC-343 | SN535 | CS35119S | FT-15 | LW035 |
SCLCR/L-2525M09S | CCMT09T3 | 25 | 25 | 150 | 25 | 32 | SMC-343 | SN535 | CS35119S | FT-15 | LW035 |
SCLCR/L-2020K12S | CCMT1204 | 20 | 20 | 125 | 22 | 25 | SMC-453 | SN630 | CS40145 | FT-15 | LW040 |
SCLCR/L-2525M12S | CCMT1204 | 25 | 25 | 150 | 25 | 32 | SMC-453 | SN630 | CS40145 | FT-15 | LW040 |
