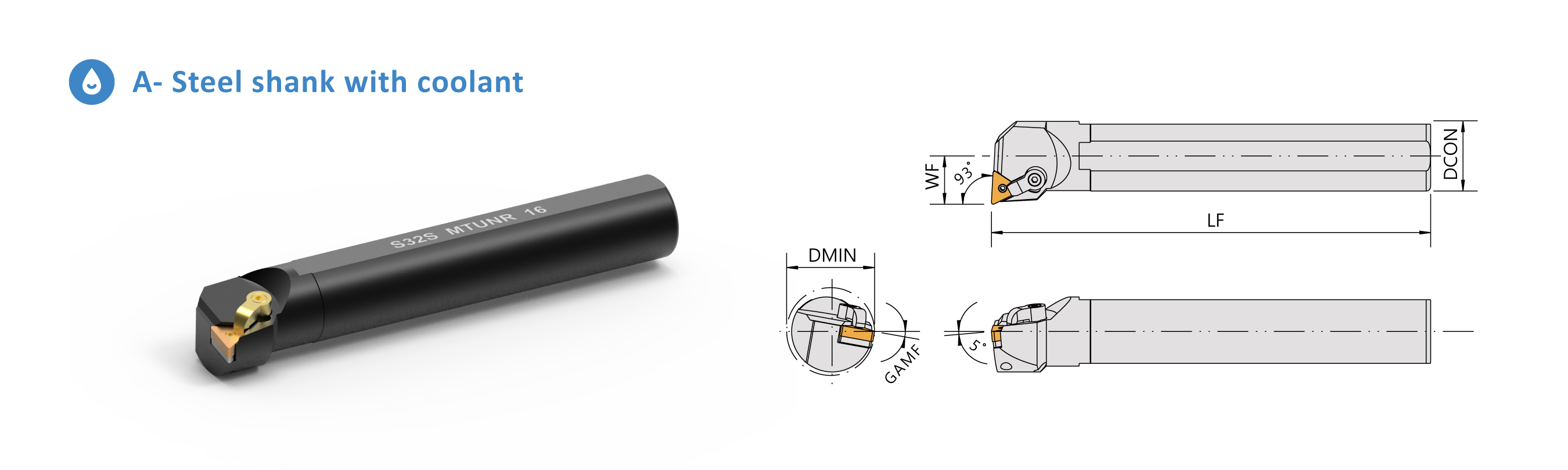

| Order No. | Insert | Dimensions(mm) | Parts | Wrench | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Right / Left |  |
柄徑 | 工作寬度 | 長度 | 最小加工徑 | 徑向前角 |  |
 |
 |
 |
 |
|
| DCON | WF | LF | DMIN | GAMF | ||||||||
| S16Q-MTUNR/L16 | TNMG1604 | 16 | 11 | 180 | 20 | 20° | - | LCS-510 | CP50-26S | CS7-5018 | LW020 | LW025 |
| S20R-MTUNR/L16 | TNMG1604 | 20 | 13 | 200 | 25 | 17° | - | LCS-510 | CP50-26 | CS7-5018 | LW020 | LW025 |
| S20S-MTUNR/L16 | TNMG1604 | 20 | 13 | 250 | 25 | 17° | - | LCS-510 | CP50-26 | CS7-5018 | LW020 | LW025 |
| S20T-MTUNR/L16 | TNMG1604 | 20 | 13 | 300 | 25 | 17° | - | LCS-510 | CP50-26 | CS7-5018 | LW020 | LW025 |
| S25R-MTUNR/L16 | TNMG1604 | 25 | 17 | 200 | 32 | 12° | - | LCS-510 | CP50-22 | CS7-6024 | LW020 | LW030 |
| S32S-MTUNR/L16 | TNMG1604 | 32 | 22 | 250 | 40 | 10° | SMT-322 | LCS-513 | CP50-22 | CS7-6024 | LW020 | LW030 |
| S40T-MTUNR/L16 | TNMG1604 | 40 | 27 | 300 | 50 | 10° | SMT-322 | LCS-513 | CP50-22 | CS7-6030 | LW020 | LW030 |
| S50U-MTUNR/L16 | TNMG1604 | 50 | 35 | 350 | 63 | 8° | SMT-322 | LCS-513 | CP50-22 | CS7-6030 | LW020 | LW030 |
| S60V-MTUNR/L16 | TNMG1604 | 60 | 36 | 400 | 70 | 10° | SMT-322 | LCS-513 | CP50-22 | CS7-6030 | LW020 | LW030 |
| S63Y-MTUNR/L16 | TNMG1604 | 63 | 38 | 500 | 75 | 10° | SMT-322 | LCS-513 | CP50-22 | CS7-6030 | LW020 | LW030 |
| S40T-MTUNR/L22 | TNMG2204 | 40 | 27 | 300 | 50 | 15° | SMT-433 | LCS-617 | CP50-28 | CS7-8030 | LW030 | LW040 |
| S50U-MTUNR/L22 | TNMG2204 | 50 | 35 | 350 | 63 | 12° | SMT-433 | LCS-617 | CP50-28 | CS7-8030 | LW030 | LW040 |
