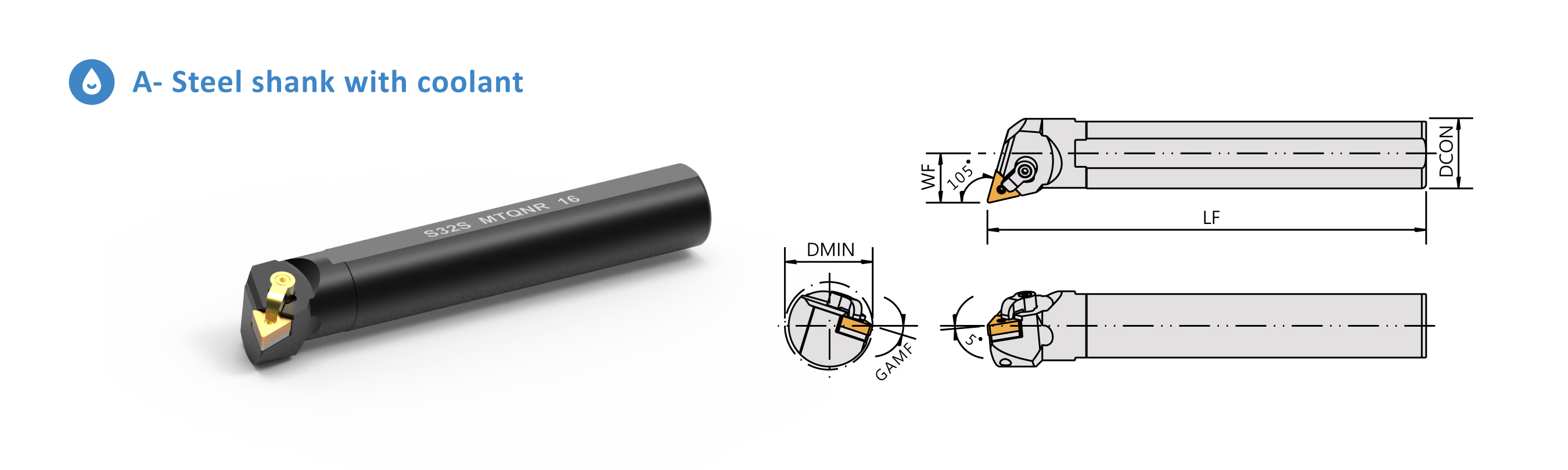

| Order No. | Insert | Dimensions(mm) | Parts | Wrench | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Right / Left |  |
柄徑 | 工作寬度 | 長度 | 最小加工徑 | 徑向前角 |  |
 |
 |
 |
 |
|
| DCON | WF | LF | DMIN | GAMF | ||||||||
| S20R-MTQNR/L16 | TNMG1604 | 20 | 13 | 200 | 25 | 15° | - | LCS-510 | CP50-26 | CS7-5018 | LW020 | LW025 |
| S25R-MTQNR/L16 | TNMG1604 | 25 | 17 | 200 | 32 | 12° | - | LCS-510 | CP50-22 | CS7-6024 | LW020 | LW030 |
| S32S-MTQNR/L16 | TNMG1604 | 32 | 22 | 250 | 40 | 17° | SMT-322 | LCS-513 | CP50-22 | CS7-6024 | LW020 | LW030 |
| S40T-MTQNR/L16 | TNMG1604 | 40 | 27 | 300 | 50 | 15° | SMT-322 | LCS-513 | CP50-22 | CS7-6030 | LW020 | LW030 |
| S50U-MTQNR/L16 | TNMG1604 | 50 | 35 | 350 | 63 | 12° | SMT-322 | LCS-513 | CP50-22 | CS7-6030 | LW030 | LW030 |
