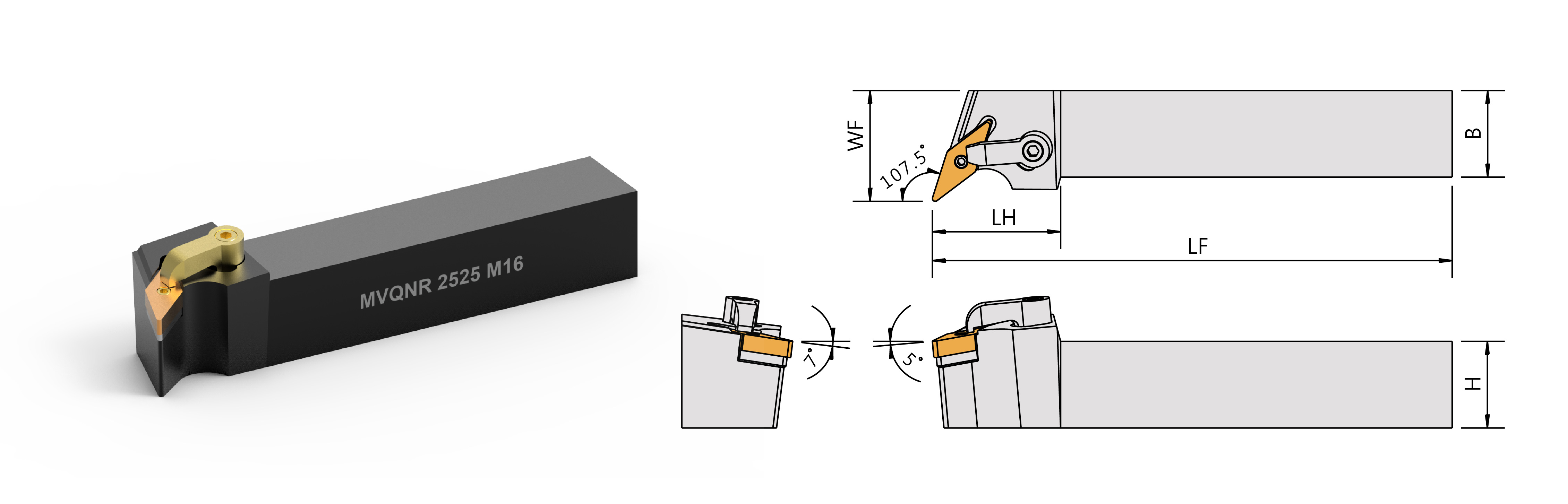

Order No. | Insert | Dimensions(mm) | Parts | Wrench | ||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|
Right/Left | 柄高 | 柄寬 | 長度 | 頭長 | 工作寬度 | |||||||
H | B | LF | LH | WF | ||||||||
MVQNR/L-2020K16 | VNMG1604 | 20 | 20 | 125 | 36 | 25 | SMV-322 | LCS-513 | CP50-25 | CS7-6030 | LW020 | LW030 |
MVQNR/L-2020K16-117.5 | VNMG1604 | 20 | 20 | 125 | 38 | 25 | SMV-322 | LCS-513 | CP50-25 | CS7-6030 | LW020 | LW030 |
MVQNR/L-2525M16 | VNMG1604 | 25 | 25 | 150 | 36 | 32 | SMV-322 | LCS-513 | CP50-25 | CS7-6030 | LW020 | LW030 |
MVQNR/L-2525M16-117.5 | VNMG1604 | 25 | 25 | 150 | 38 | 32 | SMV-322 | LCS-513 | CP50-25 | CS7-6030 | LW020 | LW030 |
MVQNR/L-3225P16 | VNMG1604 | 32 | 25 | 170 | 36 | 32 | SMV-322 | LCS-513 | CP50-25 | CS7-6030 | LW020 | LW030 |
MVQNR/L-3225P16-117.5 | VNMG1604 | 32 | 25 | 170 | 42 | 32 | SMV-322 | LCS-513 | CP50-25 | CS7-6030 | LW020 | LW030 |
MVQNR/L-3232P16 | VNMG1604 | 32 | 32 | 170 | 36 | 40 | SMV-322 | LCS-513 | CP50-25 | CS7-6030 | LW020 | LW030 |
MVQNR/L-3232P16-117.5 | VNMG1604 | 32 | 32 | 170 | 42 | 40 | SMV-322 | LCS-513 | CP50-25 | CS7-6030 | LW020 | LW030 |
