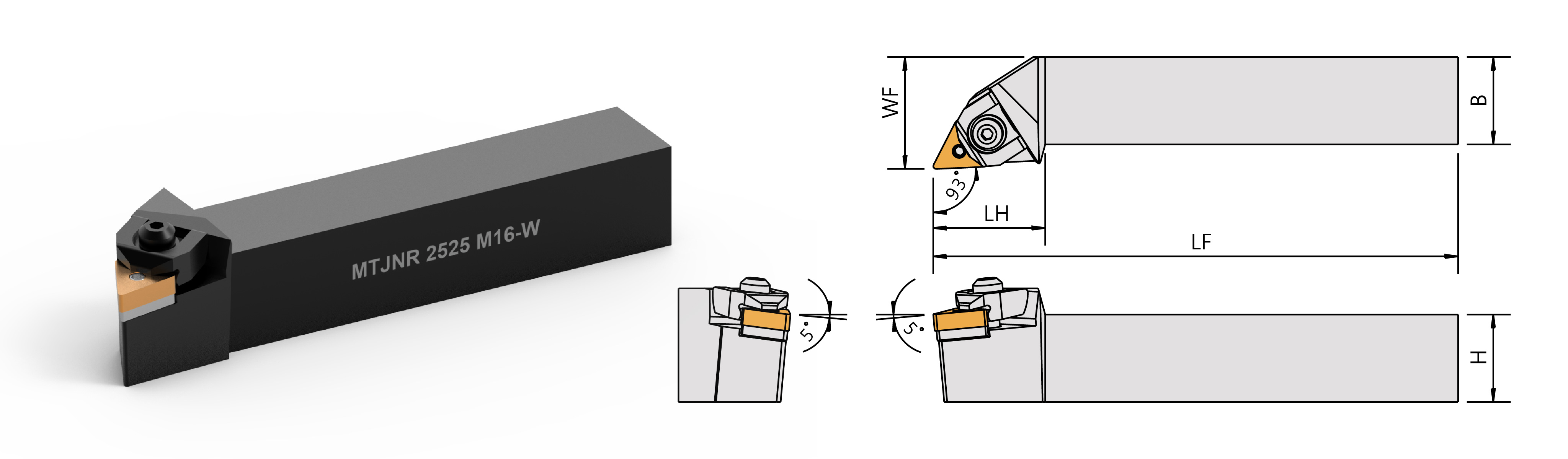

| Order No. | Insert | Dimensions(mm) | Parts | Wrench | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Right/Left |  |
柄高 | 柄寬 | 長度 | 頭長 | 工作寬度 |  |
 |
 |
 |
 |
 |
 |
|
| H | B | LF | LH | WF | ||||||||||
| MTJNR/L-1616H16W | TNMG1604 | 16 | 16 | 100 | 30 | 20 | SMT-322 | LCS-420N | MTW-30 | CSE5026 | ER04 | WS06 | LW025 | LW030 |
| MTJNR/L-2020K16W | 20 | 20 | 125 | 32 | 25 | |||||||||
| MTJNR/L-2525M16W | 25 | 25 | 150 | 32 | 32 | |||||||||
| MTJNR/L-3225P16W | 32 | 25 | 170 | 32 | 32 | |||||||||
| MTJNR/L-3232P16W | 32 | 32 | 170 | 32 | 40 | |||||||||
| MTJNR/L-2020K22W | TNMG2204 | 20 | 20 | 125 | 32 | 27 | SMT-431 | LCS-520W | MTW-34 | CSE6027 | ER25 | WS06 | LW025 | LW030 |
| MTJNR/L-2525M22W | 25 | 25 | 150 | 32 | 32 | |||||||||
| MTJNR/L-3225P22W | 32 | 25 | 170 | 32 | 32 | |||||||||
| MTJNR/L-3232P22W | 32 | 32 | 170 | 32 | 40 | |||||||||
