| Order No. | Insert | Dimensions(mm) | Clamp | Screw | Spring | Wrench | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Right / Left |  |
刀徑 | 長度 | 頭長 | 柄徑 | 刃數 |  |
 |
 |
 |
|||

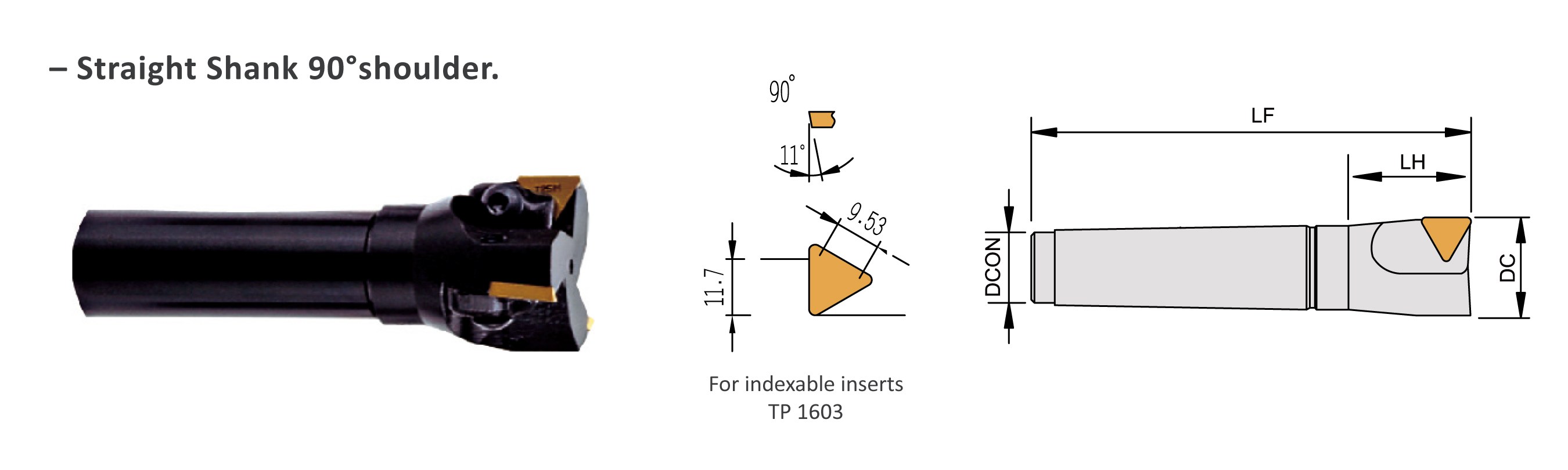

| DC | LF | LH | DCON | I No. | |||||||||
| ME30Tx25 | TP**1603 | 30 | 114 | 44 | 25 | 2 | CP50-3 | CSB0617T | SP030 | TL-25 | |||
| ME32Tx25 | TP**1603 | 32 | 114 | 44 | 25 | 2 | CP50-3 | CSB0617T | SP030 | TL-25 | |||
| ME32Tx32 | TP**1603 | 32 | 114 | 44 | 32 | 2 | CP50-3 | CSB0617T | SP030 | TL-25 | |||
| ME35Tx32 | TP**1603 | 35 | 114 | 44 | 32 | 2 | CP50-3 | CSB0617T | SP030 | TL-25 | |||
| ME40Tx32 | TP**1603 | 40 | 114 | 44 | 32 | 3 | CP50-3 | CSB0617T | SP030 | TL-25 | |||
| ME45Tx32 | TP**1603 | 45 | 116 | 46 | 32 | 3 | CP50-3 | CSB0617T | SP030 | TL-25 | |||
| ME50Tx32 | TP**1603 | 50 | 116 | 46 | 32 | 3 | CP50-3 | CSB0617T | SP030 | TL-25 | |||
