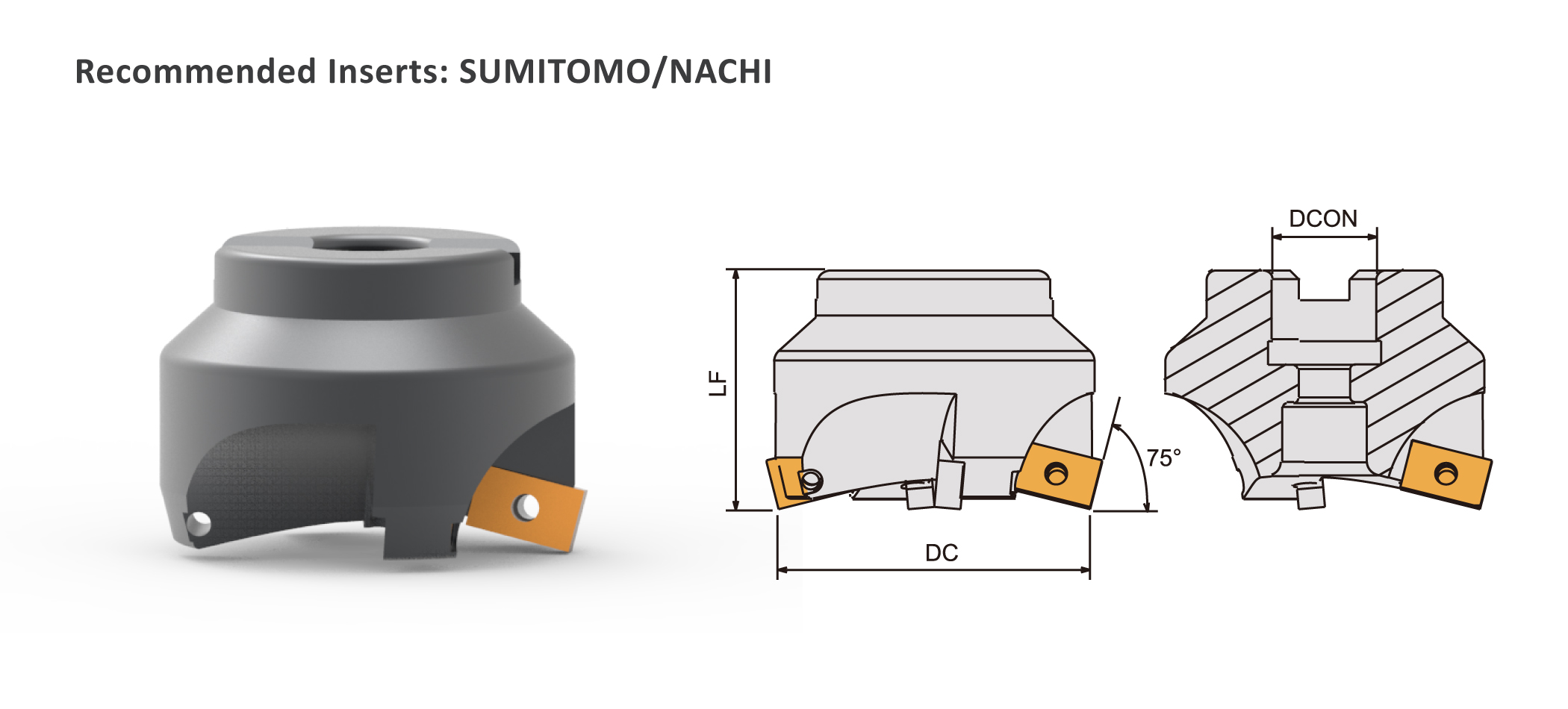

▼建議刀片品牌 : SUMITOMO/NACHI
| Order No. | Insert | Dimensions(mm) | Screw | Wrench | ||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Right / Left |  |
刀徑 | 長度 | 孔徑 | 刃數 |  |
 |
|||
| DC | LF | DCON | I No. | |||||||
| M75AX17-D063A04 | AXMT1705 | 63 | 50 | 22 | 4 | CS4009P | DBIT-TP15 | |||
| M75AX17-D080B05 | 80 | 50 | 27 | 5 | CS4009P | DBIT-TP15 | ||||
| M75AX17-D100B06 | 100 | 63 | 32 | 6 | CS4009P | DBIT-TP15 | ||||
| M75AX17-D125B07 | 125 | 63 | 40 | 7 | CS4009P | DBIT-TP15 | ||||
