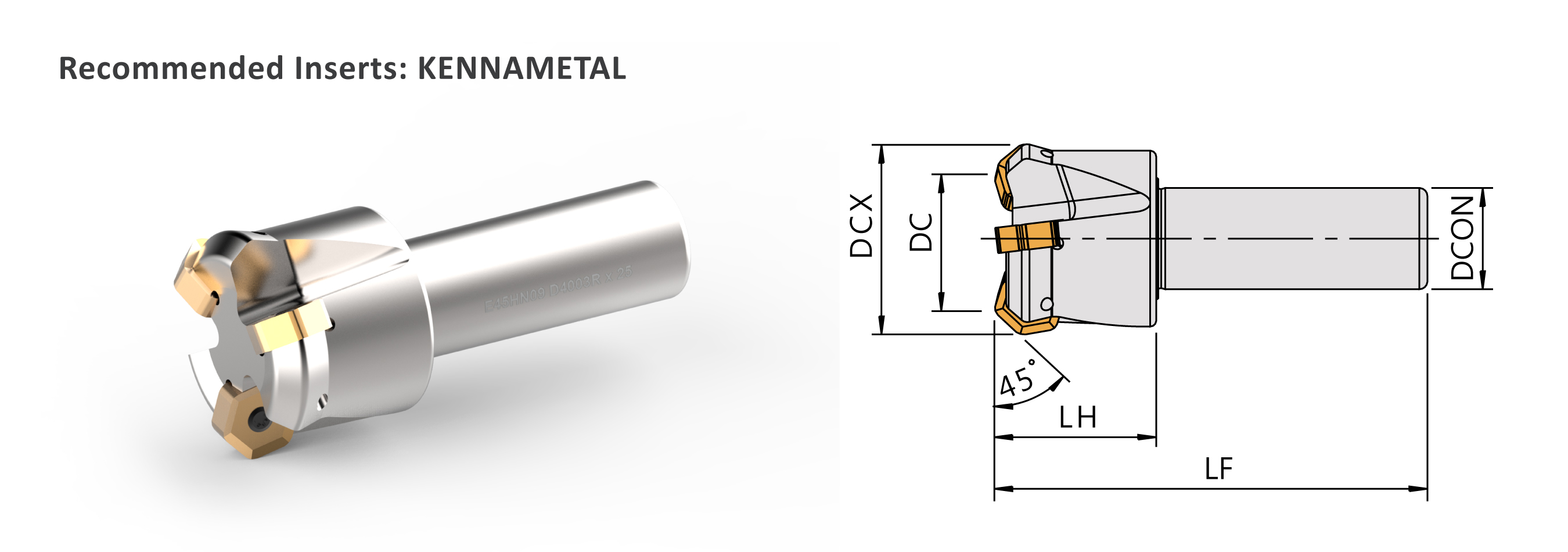

▼建議刀片品牌 : KENNAMETAL
| Order No. | Insert | Dimensions(mm) | Screw | Wrench | ||||
|---|---|---|---|---|---|---|---|---|
| Right / Left |  |
刀徑 | 長度 | 頭長 | 柄徑 | 刃數 |  |
 |
| DC | LF | LH | DCON | I No. | ||||
| E45HN09-D4003R | HNGJ0905 HNPJ0905 |
40 | 107 | 50 | 32 | 3 | CSR4010 | DBIT-T15 |
| E45HN09-D5004R | HNGJ0905 HNPJ0905 |
50 | 107 | 50 | 32 | 4 | CSR4010 | DBIT-T15 |
