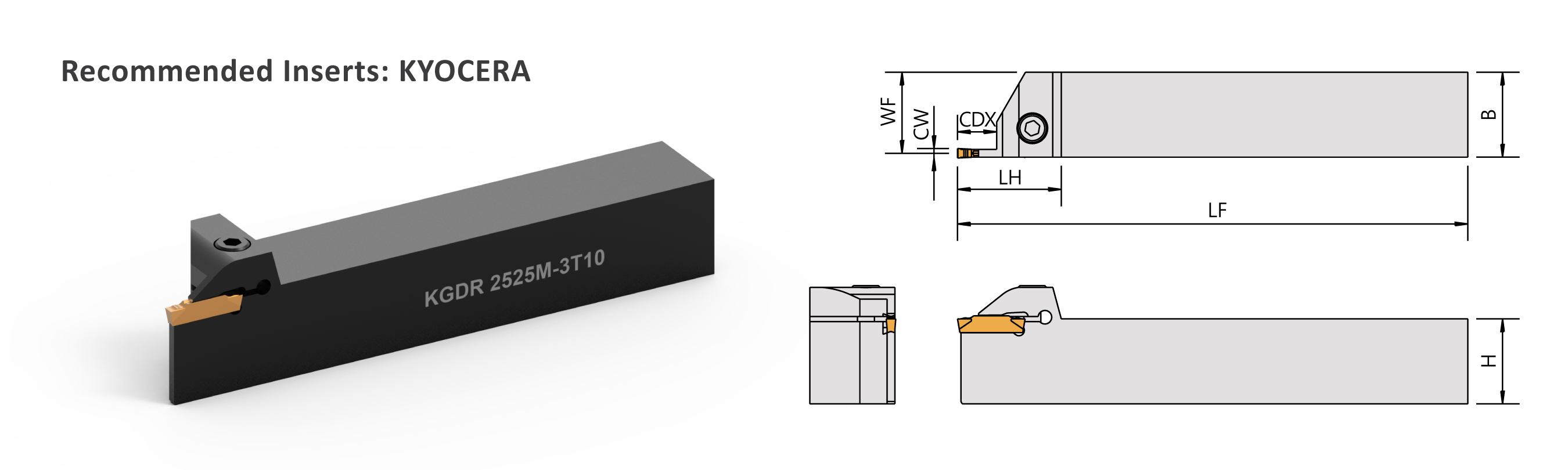

▼建議刀片品牌: KYOCERA
| Order No. | Insert | Dimensions(mm) | Parts | Wrench | ||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Right / Left |  |
柄高 | 柄寬 | 長度 | 工作寬度 | 頭長 | 切寬 | 最大切深 |  |
 |
| H | B | LF | WF | LH | CW | CDX | ||||
| KGDR/L1616H-2T06 | GDM20 | 16 | 16 | 100 | 16.2 | 27.7 | 2.0 | 6 | CSH0520 | LW040 |
| KGDR/L2020K-2T06 | GDM20 | 20 | 20 | 125 | 20.2 | 28 | 2.0 | 6 | CSH0520 | LW040 |
| KGDR/L2525M-2T06 | GDM20 | 25 | 25 | 150 | 25.2 | 28 | 2.0 | 6 | CSH0520 | LW040 |
| KGDR/L1616H-2T10 | GDM20 | 16 | 16 | 100 | 16.2 | 30.5 | 2.0 | 10 | CSH0520 | LW040 |
| KGDR/L2020K-2T10 | GDM20 | 20 | 20 | 125 | 20.2 | 30.5 | 2.0 | 10 | CSH0520 | LW040 |
| KGDR/L2525M-2T10 | GDM20 | 25 | 25 | 150 | 25.2 | 30.5 | 2.0 | 10 | CSH0520 | LW040 |
| KGDR/L1616H-2T17 | GDM20 | 16 | 16 | 100 | 16.2 | 31.2 | 2.0 | 17 | CSH0520 | LW040 |
| KGDR/L2020K-2.4T17 | GDM24 | 20 | 20 | 125 | 20.45 | 32.5 | 2.4 | 17 | CSH0520 | LW040 |
| KGDR/L2020K-2T17 | GDM20 | 20 | 20 | 125 | 20.2 | 32.5 | 2.0 | 17 | CSH0520 | LW040 |
| KGDR/L2525M-2T17 | GDM20 | 25 | 25 | 150 | 25.2 | 32.5 | 2.0 | 17 | CSH0520 | LW040 |
| KGDR/L2525M-2.4T17 | GDM24 | 25 | 25 | 150 | 25.45 | 32.5 | 2.4 | 17 | CSH0520 | LW040 |
| KGDR/L1616H-3T06 | GDM30 | 16 | 16 | 100 | 16.35 | 27.7 | 3.0 | 6 | CSH0520 | LW040 |
| KGDR/L2020K-3T06 | GDM30 | 20 | 20 | 125 | 20.35 | 28 | 3.0 | 6 | CSH0520 | LW040 |
| KGDR/L2525M-3T06 | GDM30 | 25 | 25 | 150 | 25.35 | 28 | 3.0 | 6 | CSH0520 | LW040 |
| KGDR/L1616H-3T10 | GDM30 | 16 | 16 | 100 | 16.35 | 30.5 | 3.0 | 10 | CSH0520 | LW040 |
| KGDR/L2020K-3T10 | GDM30 | 20 | 20 | 125 | 20.35 | 30.5 | 3.0 | 10 | CSH0520 | LW040 |
| KGDR/L2525M-3T10 | GDM30 | 25 | 25 | 150 | 25.35 | 30.5 | 3.0 | 10 | CSH0520 | LW040 |
| KGDR/L1616H-3T20 | GDM30 | 16 | 16 | 100 | 16.35 | 34.2 | 3.0 | 20 | CSH0520 | LW040 |
| KGDR/L2012K-3T20 | GDM30 | 20 | 12 | 125 | 12.35 | 34.2 | 3.0 | 20 | CSH0520 | LW040 |
| KGDR/L2020K-3T20 | GDM30 | 20 | 20 | 125 | 20.35 | 34.2 | 3.0 | 20 | CSH0520 | LW040 |
| KGDR/L2525M-3T20 | GDM30 | 25 | 25 | 150 | 25.35 | 35.5 | 3.0 | 20 | CSH0520 | LW040 |
| KGDR/L2020K-4T10 | GDM40 | 20 | 20 | 125 | 20.35 | 30.5 | 4.0 | 10 | CSH0520 | LW040 |
| KGDR/L2525M-4T10 | GDM40 | 25 | 25 | 150 | 25.35 | 30.5 | 4.0 | 10 | CSH0520 | LW040 |
| KGDR/L2020K-4T20 | GDM40 | 20 | 20 | 125 | 20.35 | 34.5 | 4.0 | 20 | CSH0520 | LW040 |
| KGDR/L2525M-4T20 | GDM40 | 25 | 25 | 150 | 25.35 | 35.5 | 4.0 | 20 | CSH0520 | LW040 |
| KGDR/L2525M-4T25 | GDM40 | 25 | 25 | 150 | 25.35 | 40.5 | 4.0 | 25 | CSH0520 | LW040 |
| KGDR/L2020K-5T10 | GDM50 | 20 | 20 | 125 | 20.39 | 30.5 | 5.0 | 10 | CSH0520 | LW040 |
| KGDR/L2525M-5T10 | GDM50 | 25 | 25 | 150 | 25.39 | 30.5 | 5.0 | 10 | CSH0520 | LW040 |
| KGDR/L2020K-5T17 | GDM50 | 20 | 20 | 125 | 20.39 | 37.5 | 5.0 | 17 | CSH0520 | LW040 |
| KGDR/L2525M-5T17 | GDM50 | 25 | 25 | 150 | 25.39 | 37.5 | 5.0 | 17 | CSH0520 | LW040 |
| KGDR/L2525M-5T25 | GDM50 | 25 | 25 | 150 | 25.39 | 40.5 | 5.0 | 25 | CSH0520 | LW040 |
| KGDR/L2525M-6T15 | GDM60 | 25 | 25 | 150 | 25.47 | 32.5 | 6.0 | 15 | CSH0625 | LW040 |
| KGDR/L2525M-6T30 | GDM60 | 25 | 25 | 150 | 25.47 | 45.5 | 6.0 | 30 | CSH0625 | LW050 |
