| Oder No. | Insert | Dimensions(mm) | Parts | Wrench | ||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Right/Left |  |
柄高 | 柄寬 | 總長 | 頭長 | 寬度 | 牙孔 | 刀片螺絲 | 止付螺絲 | 板手 |

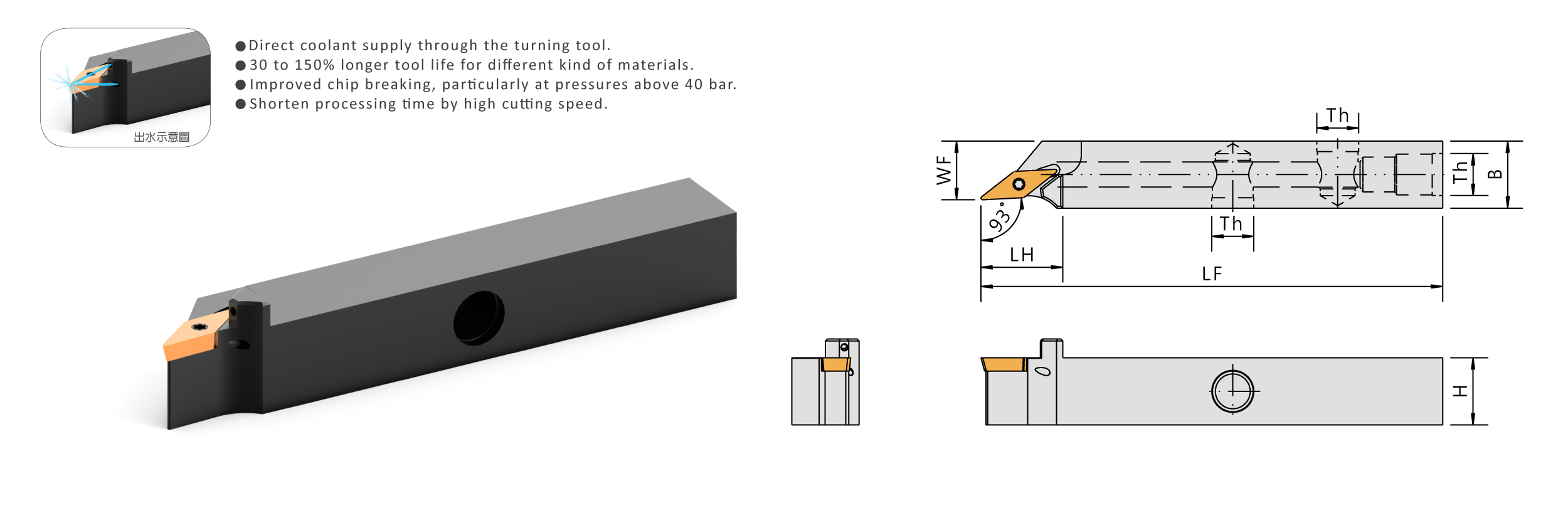

| H | B | LF | LH | WF | Th |  |
 |
 |
||
| ASVJBR-1212JX11NA | VBMT1103 | 12 | 12 | 120 | 19.5 | 10 | 5/16" | CS25055PS | CS9NN CS9-4004 |
FT-7 LW040 |
| ASVJBR-1616JX11NA | 16 | 16 | 120 | 19.5 | 14 | 1/8" | CS9NQ CS9-5005 |
FT-7 LW050 |
||
