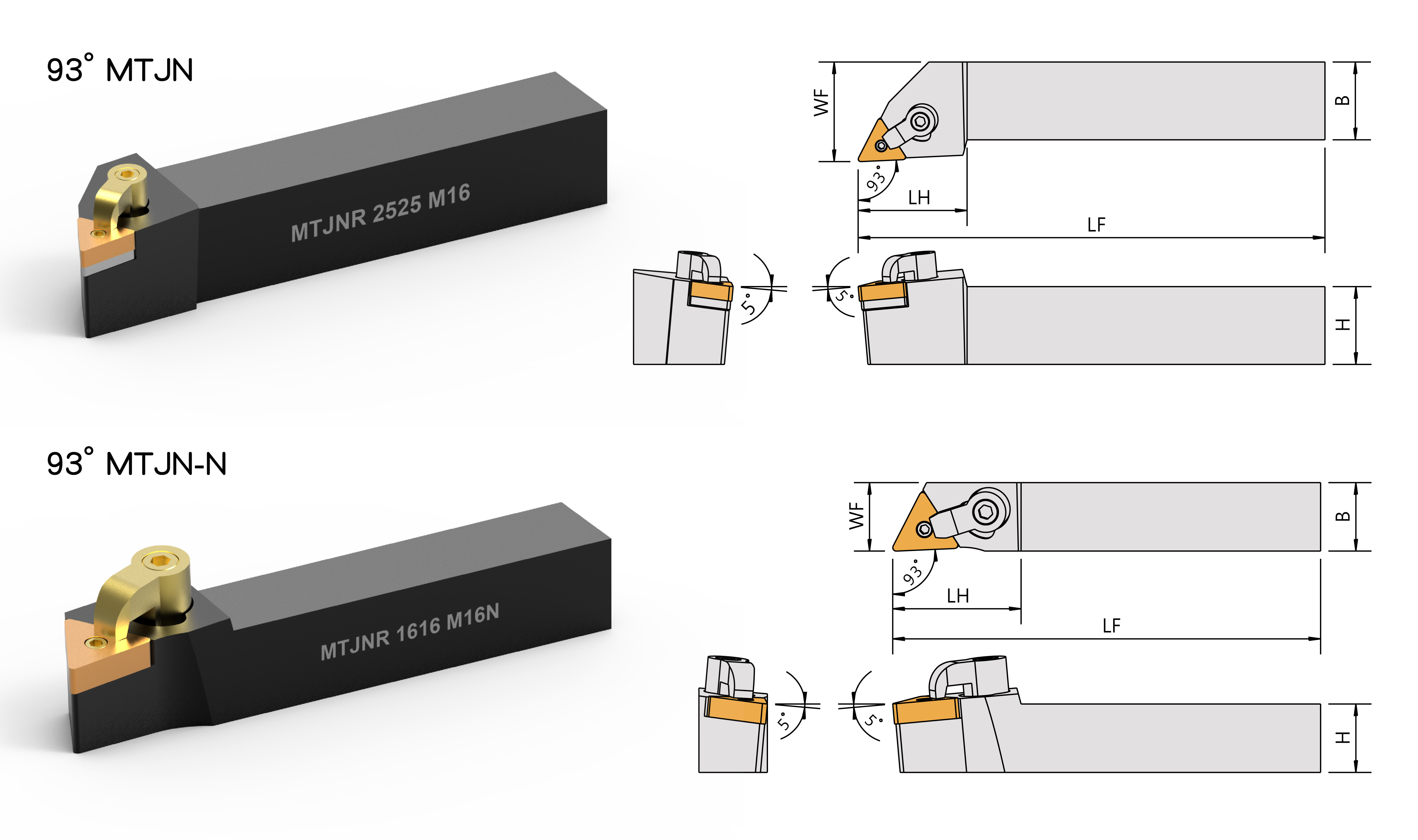

| Order No. | Insert | Dimensions(mm) | Parts | Wrench | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Right/Left |  |
H | B | LF | LH | WF |  |
 |
 |
 |
 |
|
| MTJNR/L-1616H16 | TNMG1604 | 16 | 16 | 100 | 30 | 20 | SMT-322 | LCS-513 | CP50-22 | CS7-6024 | LW020 | LW030 |
| MTJNR/L-2020K16 | TNMG1604 | 20 | 20 | 125 | 33 | 25 | SMT-322 | LCS-513 | CP50-22 | CS7-6024 | LW020 | LW030 |
| MTJNR/L-2525M16 | TNMG1604 | 25 | 25 | 150 | 35 | 32 | SMT-322 | LCS-513 | CP50-22 | CS7-6030 | LW020 | LW030 |
| MTJNR/L-3225P16 | TNMG1604 | 32 | 25 | 170 | 43 | 32 | SMT-322 | LCS-513 | CP50-22 | CS7-6030 | LW020 | LW030 |
| MTJNR/L-3232P16 | TNMG1604 | 32 | 32 | 170 | 43 | 40 | SMT-322 | LCS-513 | CP50-22 | CS7-6030 | LW020 | LW030 |
| MTJNR/L-2525M22 | TNMG2204 | 25 | 25 | 150 | 43 | 32 | SMT-433 | LCS-617 | CP50-28 | CS7-8030 | LW030 | LW040 |
| MTJNR/L-3225P22 | TNMG2204 | 32 | 25 | 170 | 43 | 32 | SMT-433 | LCS-617 | CP50-28 | CS7-8030 | LW030 | LW040 |
| MTJNR/L-3232P22 | TNMG2204 | 32 | 32 | 170 | 43 | 40 | SMT-433 | LCS-617 | CP50-28 | CS7-8030 | LW030 | LW040 |
| MTJNR/L-4040S22 | TNMG2204 | 40 | 40 | 250 | 43 | 50 | SMT-433 | LCS-617 | CP50-28 | CS7-8030 | LW030 | LW040 |
| MTJNR/L-4040S27 | TNMG2706 | 40 | 40 | 250 | 43 | 50 | SMT-534 | LCS-0822 | CP50-28 | CS7-8030 | LW030 | LW040 |
| MTJNR/L-1212H16N | TNMG1604 | 12 | 12 | 100 | 30 | 12 | - | LCS-510 | CP50-22 | CS7-6024 | LW020 | LW030 |
| MTJNR/L-1616H16N | TNMG1604 | 16 | 16 | 100 | 30 | 16 | SMT-322 | LCS-513 | CP50-22 | CS7-6024 | LW020 | LW030 |
