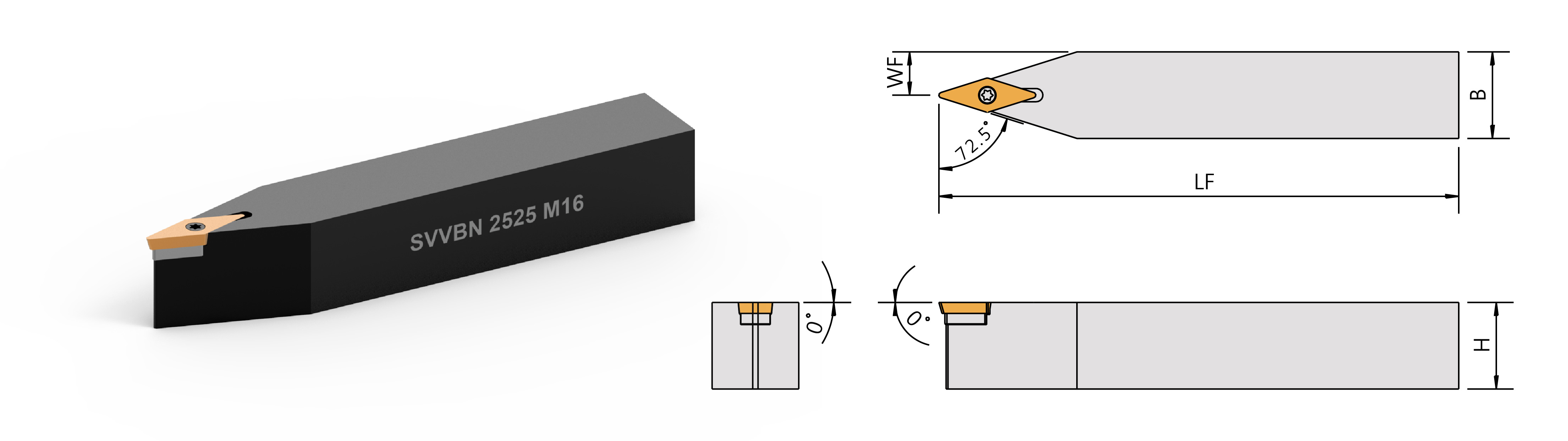

Order No. | Insert | Dimensions(mm) | Parts | Wrench | ||||||
---|---|---|---|---|---|---|---|---|---|---|
Right/Left | H | B | LF | WF | ||||||
SVVBN-2020K11 | VBMT1103 | 20 | 20 | 125 | 10 | - | - | CS25060 | FT-7 | - |
SVVBN-2525M11 | VBMT1103 | 25 | 25 | 150 | 12.5 | - | - | CS25060 | FT-7 | - |
SVVBN-2020K16 | VBMT1604 | 20 | 20 | 125 | 10 | SMV-321 | SN535 | CS35115/ CS35119S |
FT-15 | LW035 |
SVVBN-2525M16 | VBMT1604 | 25 | 25 | 150 | 12.5 | SMV-321 | SN535 | CS35115/ CS35119S |
FT-15 | LW035 |
